All Wheel Drive (AWD) Vehicles

All Wheel Drive (AWD) vehicles







NOTE:
- Secure all hose connections using hose clamps appropriate for the model type.
- Always replace seals and gaskets.

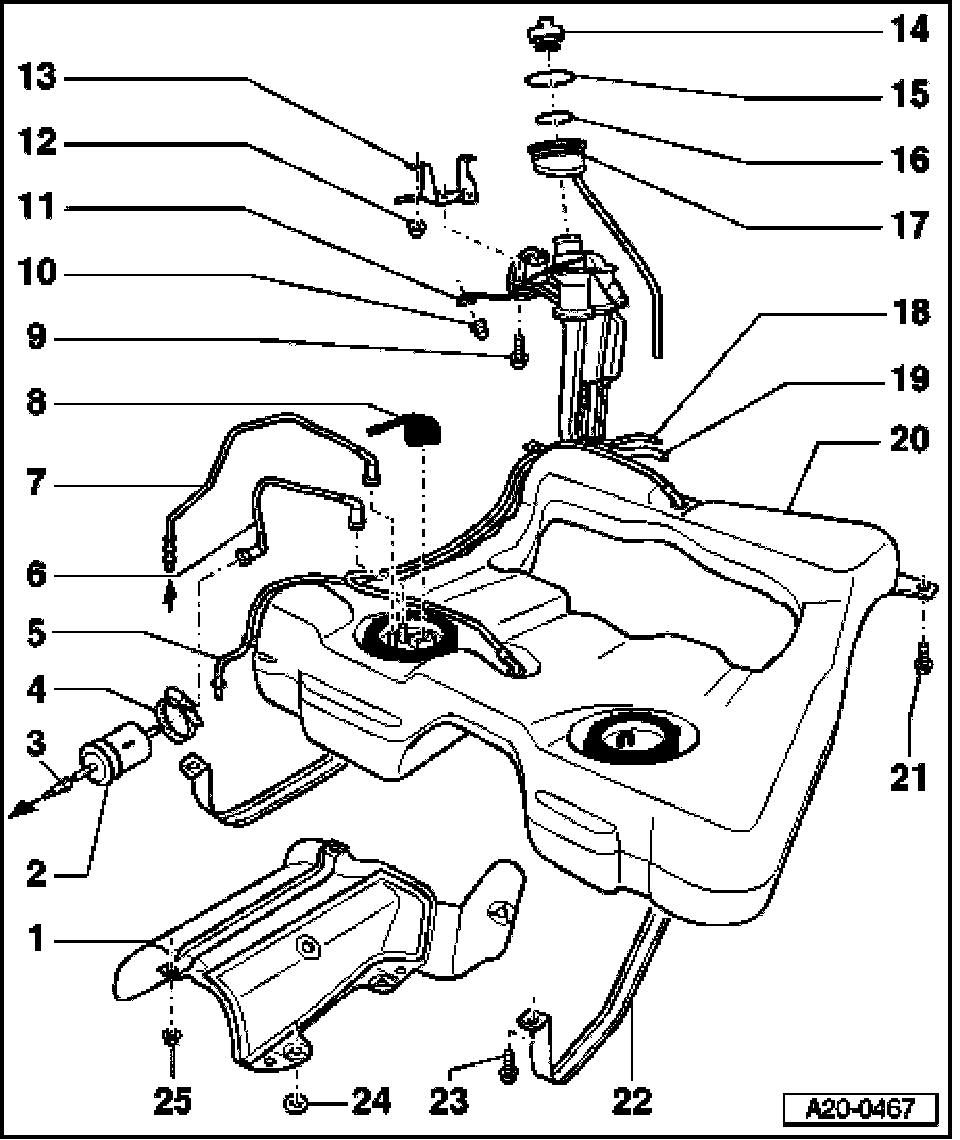

1 Heat shield
- with tension strap
- for fuel tank
2 Fuel filter
- Note installation position
- Installation position: Arrow points in direction of flow
3 Fuel supply line
- Black
- To fuel rail
- to remove from fuel filter, press release button on connecting piece
4 Screw clip
- for fuel filter
- Note installed position See Fig. 2.
5 Vent line
- white
- From EVAP canister
- to Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
6 Fuel supply line
- Black
- To fuel filter
- connects to connection with "V" marking at connector flange
- to remove from connector flange or from filter, press release button on connecting piece
7 Fuel return line
- blue
- from fuel rail
- connects to connection with "R" marking at connector flange
- to remove from connector flange, press release button on connecting piece
8 Electrical 4-pin harness connector
9 11 Nm
10 Cap nut - 10 Nm
11 Ground (GND) connection
- Installed position / check requirements See Fig. 1.
- ensure secure fit of connector at metal ring of fuel filler tube
- Thread bolt eyelet of electrical wire tightly using cap nut (item 10 )
- after installing, check electrical connection of metal ring at fuel filler tube to a blank portion of chassis using Ohm meter
Specified value: approx. 0 Ohm
12 Nut - 10 Nm
13 Bracket
- for fuel filler tube
14 Cap
- with seal
15 Tensioning ring
- large diameter
16 Tensioning ring
- small diameter
17 Rubber top
- with overflow hose
- Note installed position
18 Vent line
- white
- From EVAP canister
- to Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
19 Vent line
- to EVAP canister
- only remove together with pressure retention valve and gravity valve
20 Fuel tank
21 26 Nm
22 Tension straps
- Note varying lengths
23 26 Nm
24 Clamping washer
- removing: turn to left
- installing: tighten to 2 Nm
25 26 Nm

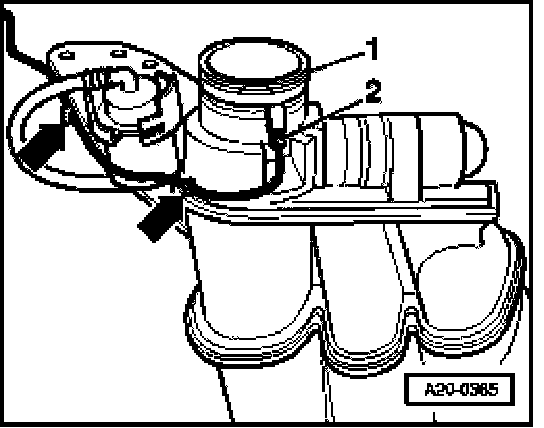

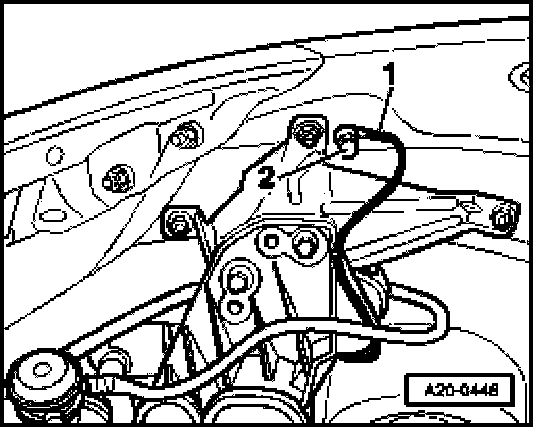

Fig. 1 Installation position of Ground (GND) connection







- Route Ground (GND) connection as shown in figure.
- Ensure connector -2- of Ground (GND) connection fits securely at metal ring -1- of fuel filler tube.
- Engage Ground (GND) connection at both retaining clips (arrows).

NOTE: Depending on construction version, a cable tie may be installed in place of a clip.







- Thread eyelet of electrical wire -1- tightly to body using cap nut -2- (10 Nm).

WARNING: After installing, check electrical connection of metal ring at fuel filler tube to a blank portion of chassis using Ohm meter.
- Specified value: approx. 0 Ohm.

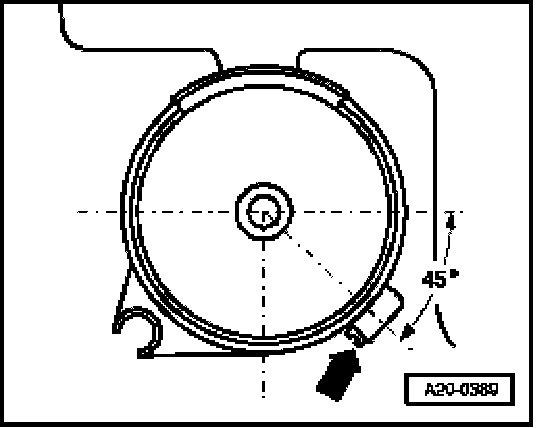

Fig. 2 Installation position of screw clip for fuel filter







- Install screw clip (arrow) as shown in illustration.

NOTE: Illustration depicts fuel filter from front.
