Vacuum Reservoir: Locations

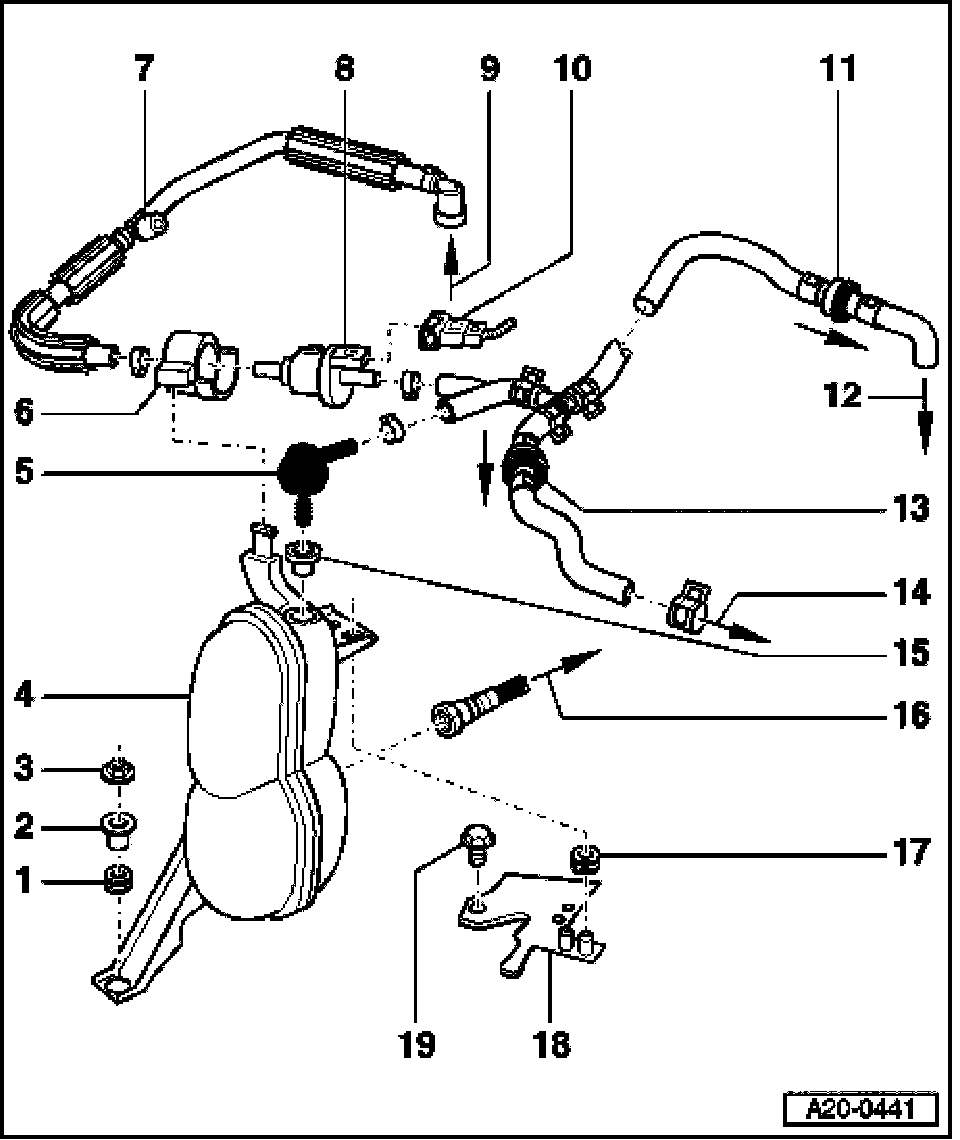

Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- And Vacuum Reservoir, Component Overview







NOTE: Arrows on the hose/pipe connections must line up across from each other.

1 Rubber grommet
2 Socket
3 8 Nm
4 Vacuum reservoir
5 Check-valve
- inserted in vacuum reservoir
6 Bracket
- for Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
7 Test connection
8 Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- Component location: Front right in engine compartment
9 From EVAP canister
10 Electrical 2-pin harness connector
- for Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
11 Check-valve
- Installation position (light/dark side): Arrow points in direction of aperture, as shown in figure.
12 to intake tube at turbocharger
13 Check-valve
- Installation position (light/dark side): Arrow points in direction of aperture, as shown in figure.
14 to Intake manifold
15 Rubber grommet
16 to EVAP canister
17 Rubber grommet
18 Bracket
- for vacuum reservoir
19 8 Nm
