Leak Detection Pump (LDP) -V144-, Component Overview

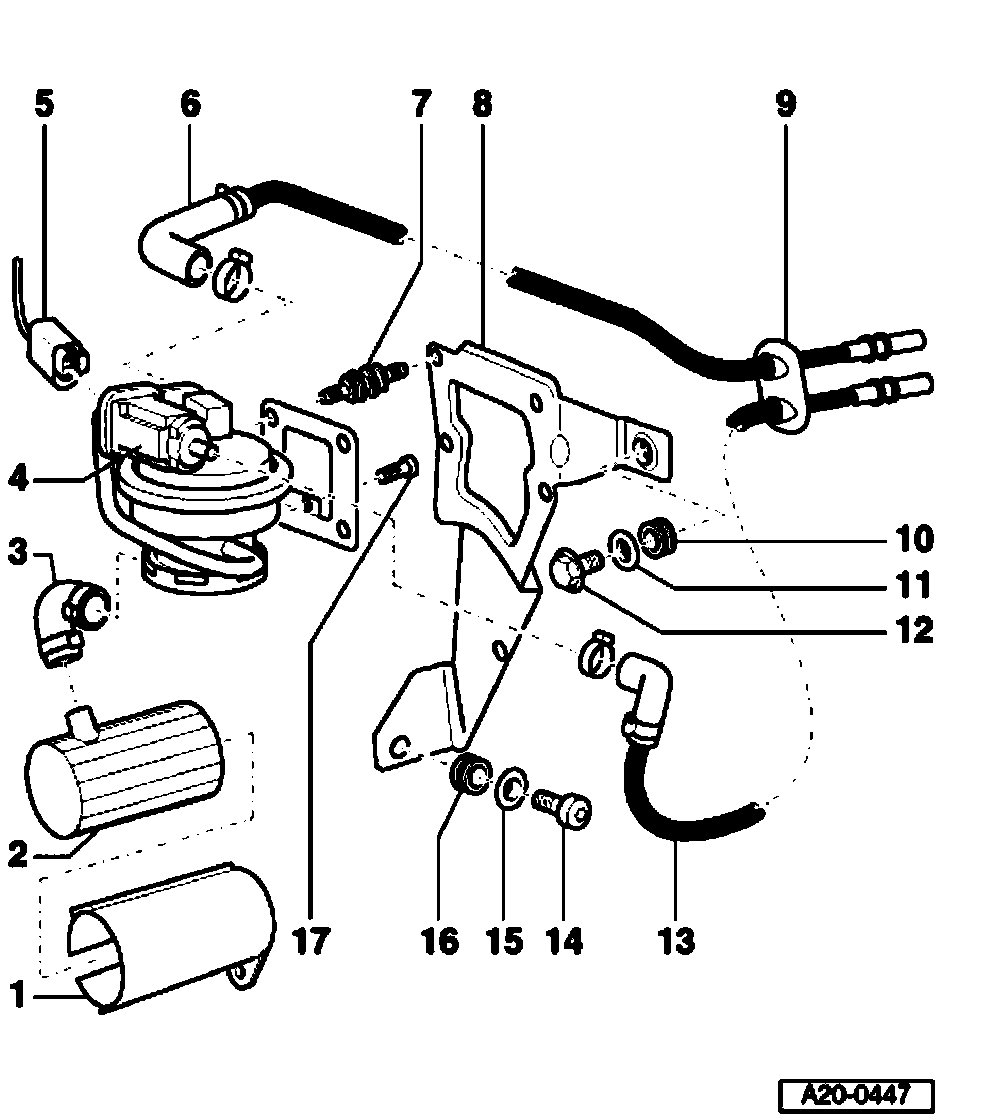

Leak Detection Pump (LDP) -V144-, component overview





1. Bracket
^ For air filter
2. Air filter
^ For Leak Detection Pump (LDP) -V144
3. Hose
4. Leak Detection Pump (LDP) -V144
5. 3-pin harness connector
6. Vacuum line
^ To vacuum reservoir, at right in engine compartment
7. Set pin
8. Bracket
9. Grommet
10. Grommet
11. Bushing
12. 8 Nm
13. Vacuum line
^ To EVAP canister
14. 8 Nm
15. Bushing
16. Grommet
17. 5 Nm
