Leak Detection Pump (LDP) -V144-, Component Overview

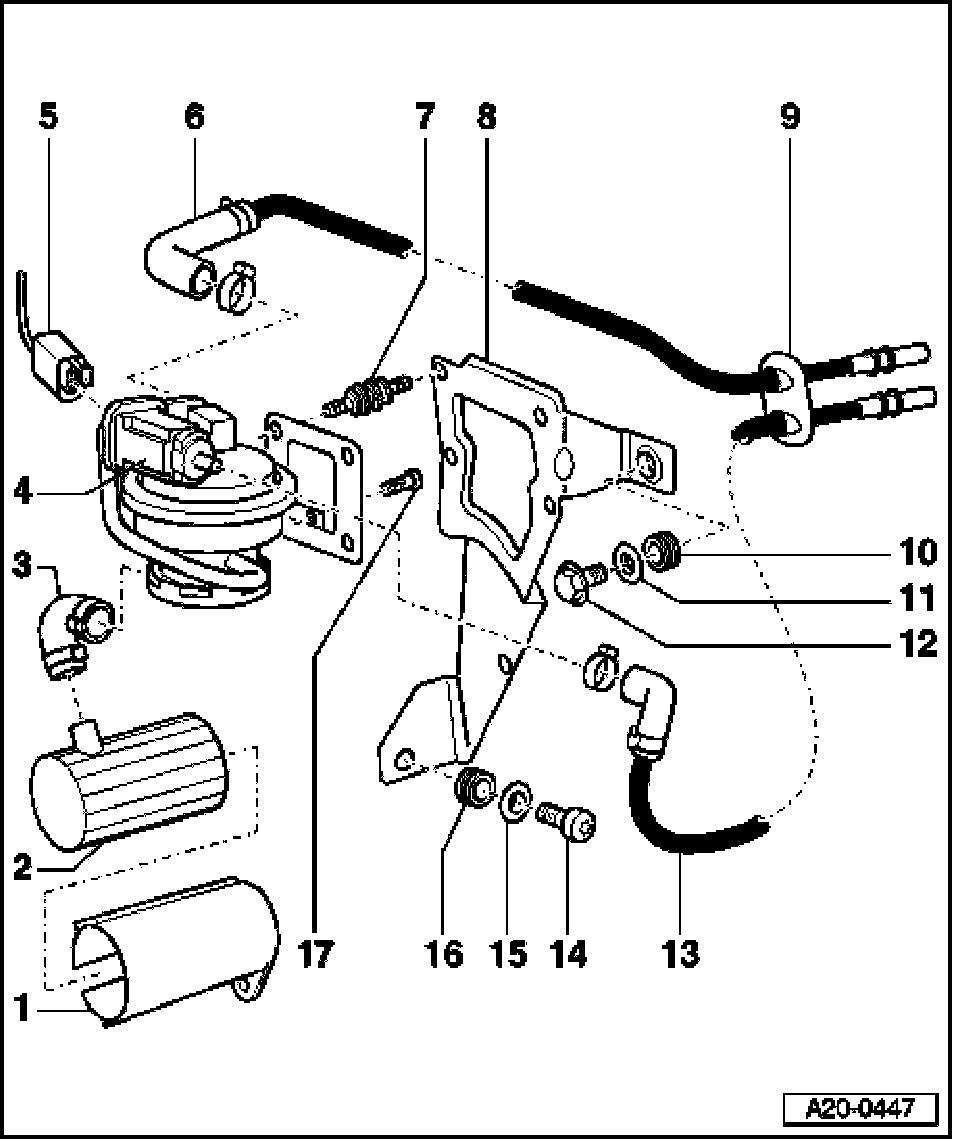

Leak detection pump (LDP) -V144-, component overview







1 Bracket
- for air filter
2 Air filter
- for Leak detection pump (LDP) -V144-
3 Hose
4 Leak detection pump (LDP) -V144-*
- Component location: Under wheel housing liner in front right wheel housing
5 Electrical 3-pin harness connector
6 Vacuum line
- to vacuum reservoir, in engine compartment, right
7 Retaining pins
8 Bracket
9 Rubber grommet
10 Rubber grommet
11 Socket
12 8 Nm
13 Vacuum line
- to EVAP canister
14 8 Nm
15 Socket
16 Rubber grommet
17 5 Nm
