Air Injection Control Valve: Service and Repair

Combination valve, removing and installing

NOTE: Always replace all seals and sealing rings.

Removing

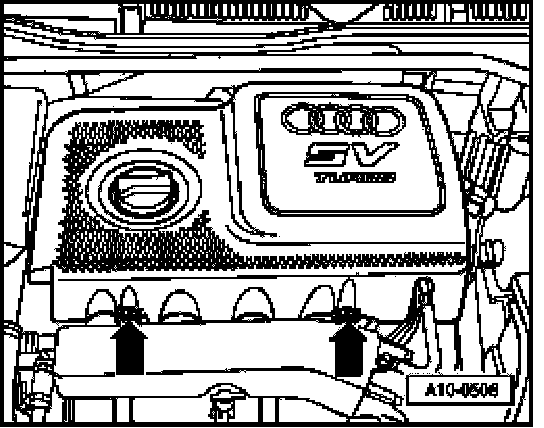

- Remove engine cover.

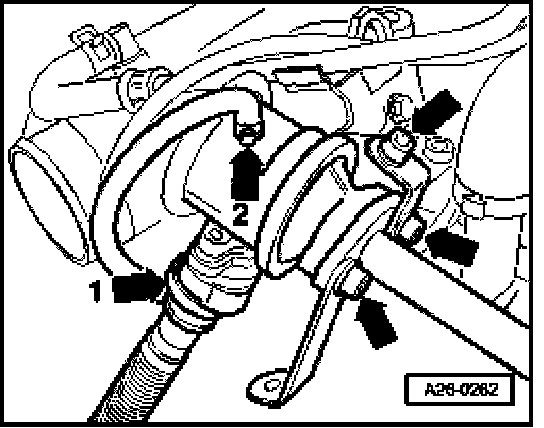

- Remove vacuum hose -1- and connection pipe -2- at combination valve.
- Unbolt combination valve from bracket (arrows).

Installing
Installation is performed in the reverse order of removal.
