With Generic Scan Tool

Wastegate Bypass Regulator Valve, Checking

Recommended special tools and equipment e.g.:
- VAG1526 multimeter or VAG1715 multimeter
- VAG1594 connector test kit

Test sequence
- Switch ignition off.

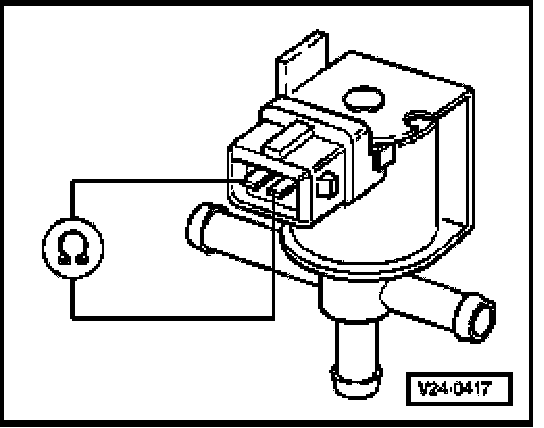

- Disconnect connector at solenoid valve for boost pressure regulation.







- Measure resistance between terminals of valve.
Specified value: 25...35 Ohm

If specified value is not obtained:
- Replace Wastegate Bypass Regulator Valve -N75-.
