Installation Location of Brake Light & Brake Pedal Switch

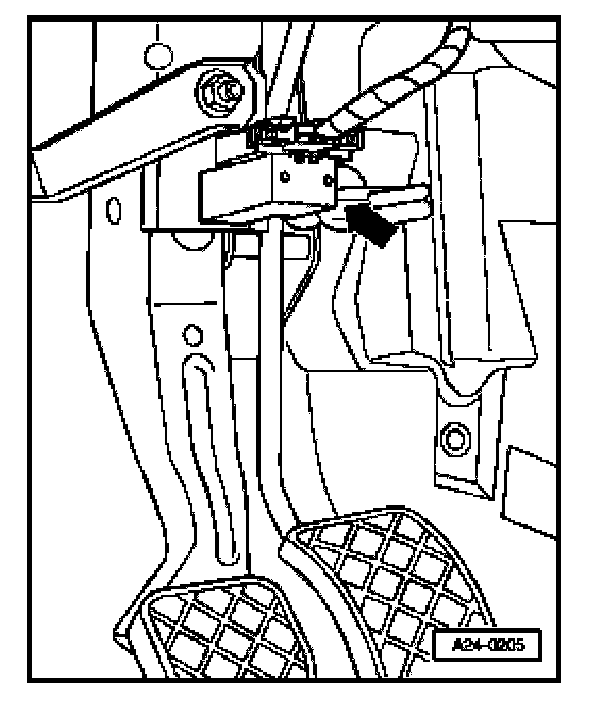

Fig. 6 Installation location of brake light switch -F- and brake pedal switch (cruise control/diesel direct fuel injection -F47-
