Power Distribution Relay: Locations

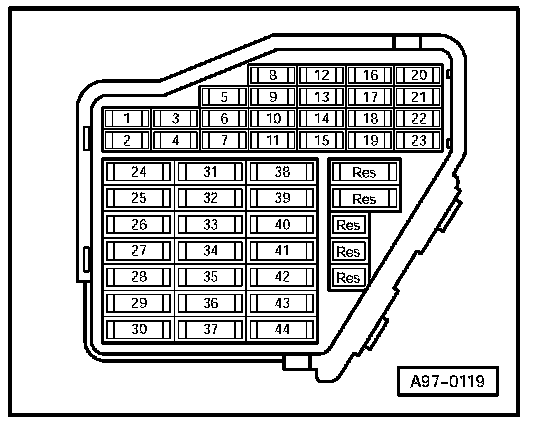

Fuse Panel:

Starting with fuse position 23, fuses in the fuse holder are identified with 223 in the wiring diagram.

Micro Central Electric Panel:

Relay Location
1 - Dual Horn Relay, J4
2 - Load Reduction Relay, J59
4 - Fuel Pump (FP) Relay, J17
5 - Wiper/Washer Intermittent Relay, J31
6 - Wiper/Washer Intermittent Relay, J31

B - Hydraulic Pump Relay Fuse, S279
C - Power Window Circuit Breaker Rear, S43

Fuse Location
A - Convertible Top Fuse, S67

13-Fold Relay Panel:

Relay Location
2 - Lamp Control Module, J123
3 - Lamp Control Module, J123
4 - Fog Light Relay, J5
5 - Starting Interlock Relay, J207*
10 - Rear Window Defogger Relay, J9
11 - Starting Interlock Relay, J207**
13 - Back-up Light Relay, J219***

* - Vehicles with Manual Transmission
** - Vehicles with Automatic Transmission 09G
*** - Vehicles with Direct Shift Gearbox (DSG) 02E

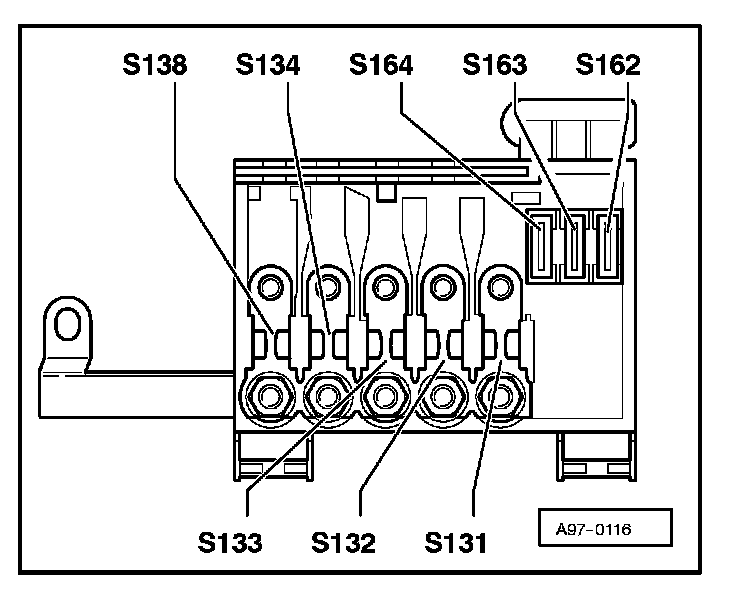

Main Fuse Box/Battery:

Fuses Location
S131 - Safety fuse 1
S132 - Safety fuse 2
S133 - Safety fuse 3
S134 - Safety fuse 4
S138 - Safety fuse 5
S162 - Fuse 1 in fuse bracket/battery
S163 - Fuse 2 in fuse bracket/battery
S164 - Fuse 3 in fuse bracket/battery

W-Box In Engine Compartment:

Relay Location
1 - Secondary Air Injection (AIR) Pump Relay, J299
2 - Motronic Engine Control Module (ECM) Power Supply Relay, J271

Fuses Location
7 - Fuse for Control Module - Automatic Transmission, S113
