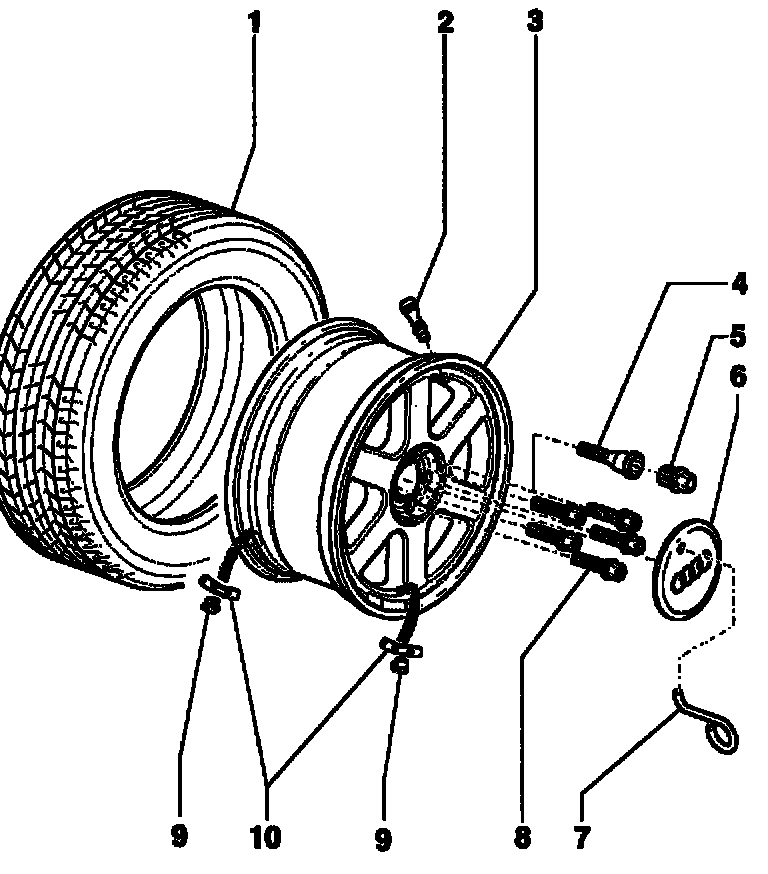

6 - Spoke Light Alloy Wheel

1 - Tire
2 - Valve
- Allocation, refer to Parts Supplier
3 - Light alloy wheel
- Hole circle diameter: 100 mm
- 7.5J x17, rim offset 32 mm
4 - Anti - theft wheel bolt
- Tighten to 120 Nm (89 ft. lbs.)
- M14 x 1.5 x 27.5 mm
5 - Adapter for anti - theft wheel bolt
- T40004 Assembly tool
6 - Protective cap
- With hole for extractor
7 - Extractor
- For pulling off protective cap; included in vehicle tool kit
8 - Wheel bolt
- Tighten to 120 Nm (89 ft. lbs.)
- M14 x 1.5 x 27.5 mm
9 - Retaining spring for balancing weights
10 - Balancing weights
- Maximum permissible weight: 60 9 per rim flange
