Vanity Lamp: Service and Repair

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

Make-up Mirror Light, Removing And Installing

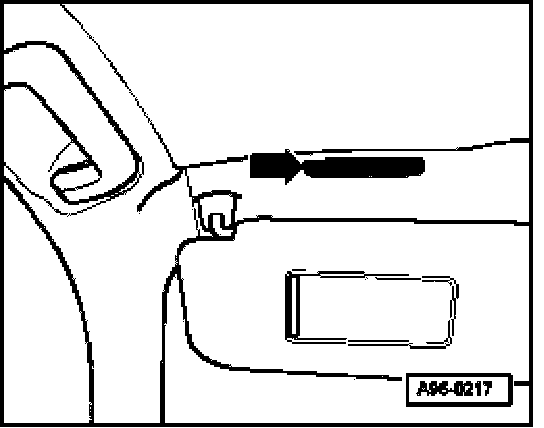

NOTE: The illustration shows the light for the make-up mirror on the left-hand side. The right-hand side is mirror image.

Removing







- Carefully pry off light for make-up mirror by applying a flat-tipped screwdriver at the slot provided -arrow-.
- Disconnect electrical connection.
- Install a new bulb: 12 V, 5 W.

Installing
- Install in reverse order of removal.
