Turn Signal Bulb: Service and Repair

Turn Signal Bulb, Replacing

NOTE:
- Left or right engine compartment trim must be removed prior to access to rear of headlight housing.
- Removal and installation procedure is identical for normal (halogen) and High Intensity Gas Discharge (HID) lamps.







Removing

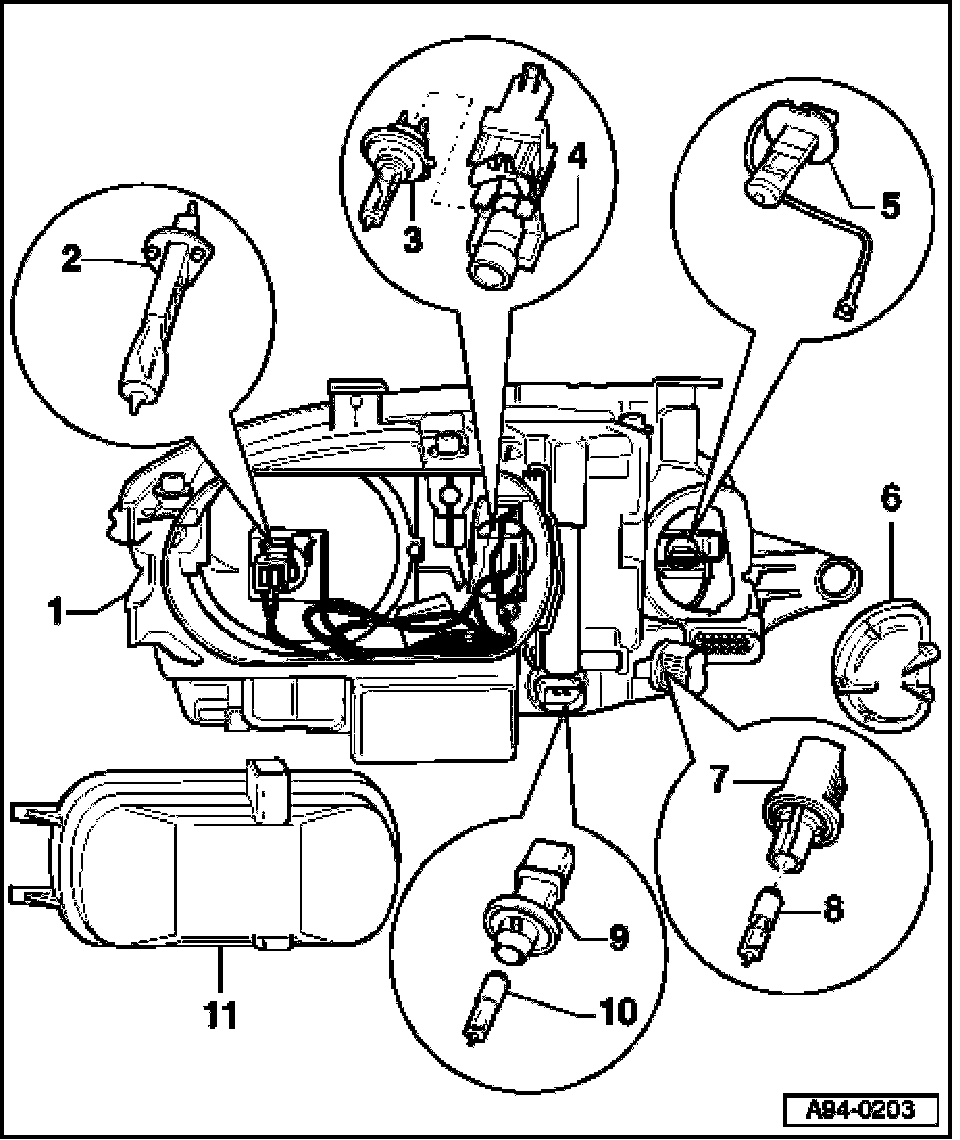

- Turn bulb holder -9- counter-clockwise and remove from housing -1-.
- Only unplug electrical connector if bulb holder -9- has to be replaced.
- Remove bulb -10- from bulb holder -9-.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Install new bulb in bulb holder.
- Install in reverse order of removal.
