Trunk Lamp: Service and Repair

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

Luggage Compartment Lights, Removing And Installing

NOTE:
- The luggage compartment lights must be removed in order to change a bulb.
- Bulb for luggage compartment light: 12 V, 5 W.
- One light is installed in the rear lid trim and one in the left side trim in the luggage compartment.

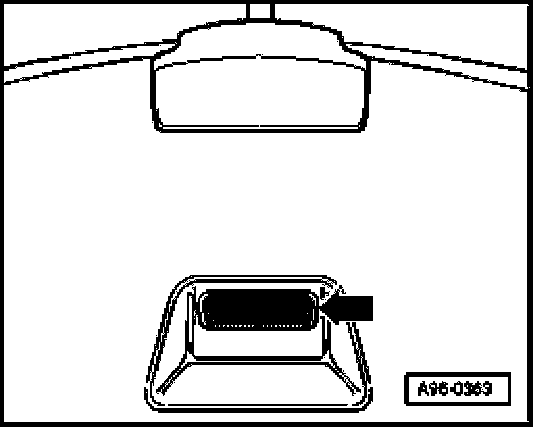

Luggage compartment light in rear lid trim, removing







- Using a flat-tipped screwdriver, pry luggage compartment light -arrow- out of trim.
- Disconnect electrical connection.
- Remove bulb from holder.

Installing
- Connect electrical connection.
- Insert luggage compartment light into opening and clip in on the opposite side -arrow-.

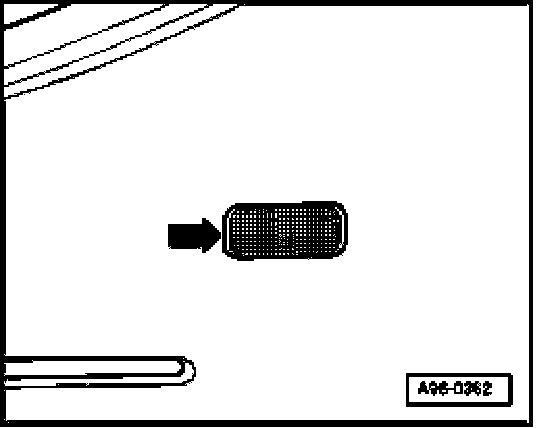

Luggage compartment light in luggage compartment side/front trim, removing







- Using a flat-tipped screwdriver, pry luggage compartment light -arrow- out of trim.
- Disconnect electrical connection.
- Remove bulb from holder.

Installing
- Connect electrical connection.
- Insert luggage compartment light into opening and clip in on the opposite side -arrow-.
