Tail Lamp: Locations

Rear Lights

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

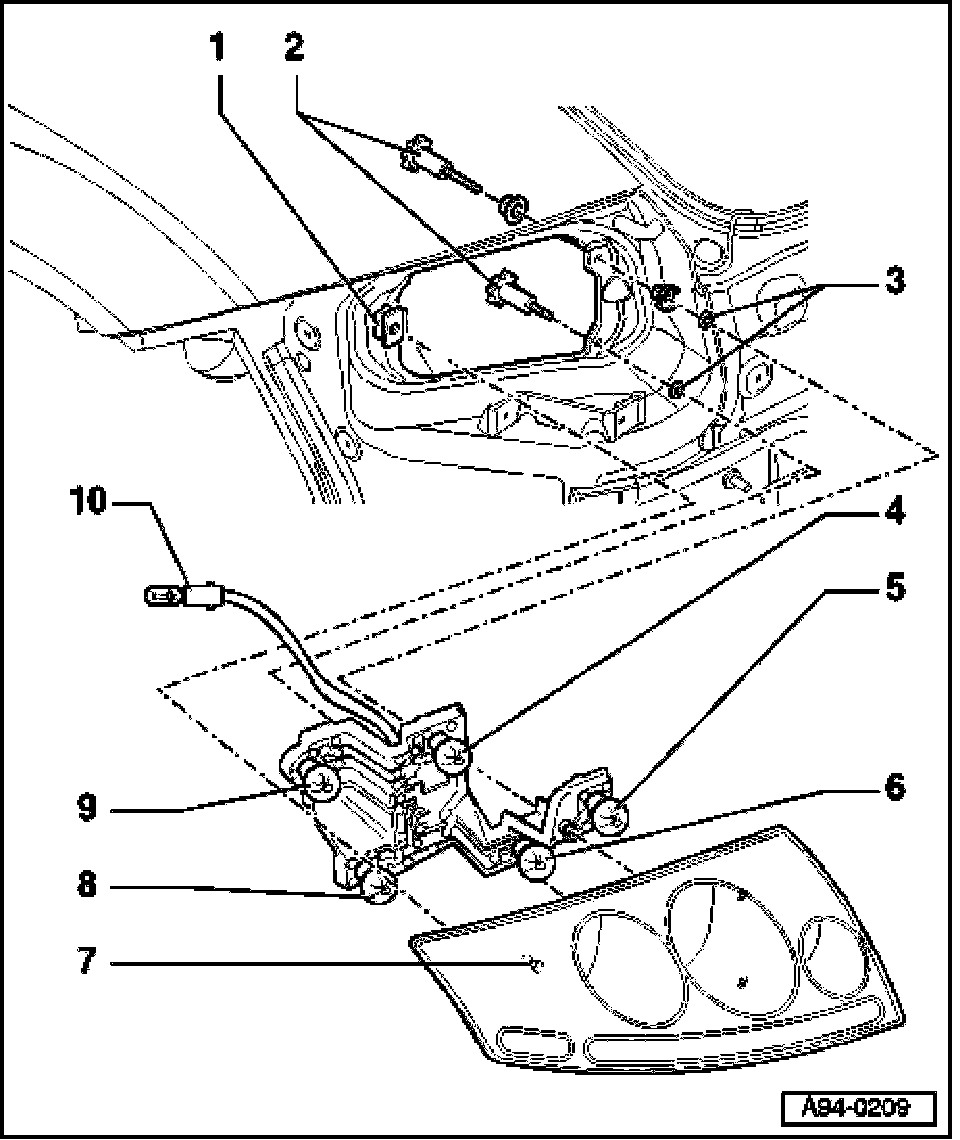

Rear lights, assembly

NOTE: Left rear light assembly is shown. Bulb arrangement in right rear light assembly is mirror image.







1 - Securing clips
2 - Securing bolts
3 - Plastic washers
4 - Tail light bulb
- 12 V, 21/5 W
5 - Rear fog light bulb (or back-up light bulb on right side of vehicle)
- 12 V, 21 W
6 - Turn signal bulb
- 12 V, 21 W
7 - Ball pin on rear light housing
- Engages in plastic clip -1-
- Can be adjusted to align rear light with body contours
8 - Turn signal bulb
- 12 V, 21 W
9 - Brake light/tail light bulb
- 12 V, 21/5 W
10 - Side marker light bulb
- 12 V, 5 W glass socket lamp
