Adjuster; Headlight Range Control W/ Instrument Lighting Dimmer

CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owners's Manual

Adjuster For Headlight Range Control With Instrument Lighting Dimmer, Removing And Installing

Removing
- Remove light switch.

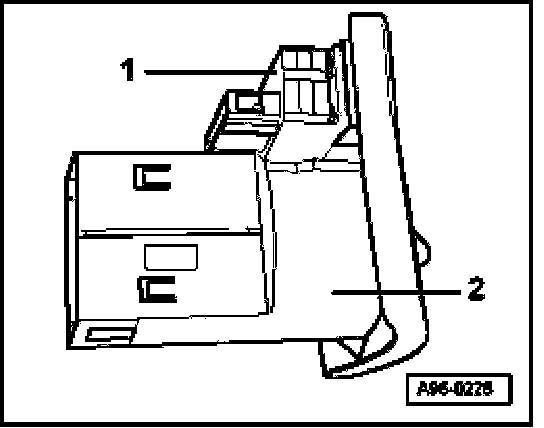

- Using a flat-tipped screwdriver, lift up headlight range control adjuster 1- and pull it out of light switch housing -2-.

Installing
- Insert headlight range control adjuster -1- in light switch housing -2-.
- Insert lighting switch in instrument panel and locate correctly.
