Parking Light Bulb: Service and Repair

Parking/side Marker Light Bulb, Replacing

NOTE:
- Left or right engine compartment trim must be removed prior to access to rear of headlight housing.
- Removal and installation procedure is identical for normal (halogen) and High Intensity Gas Discharge (HID) lamps.







Removing

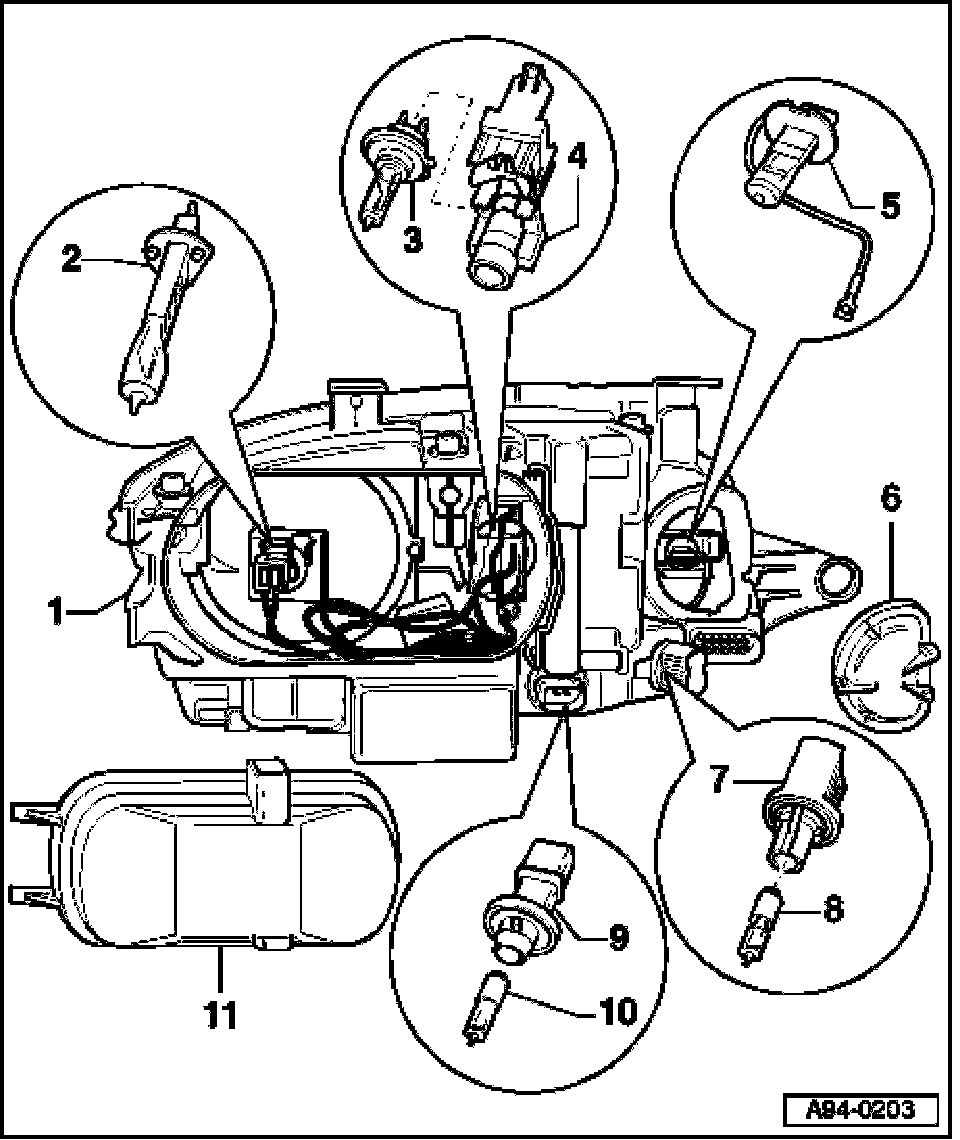

- Turn bulb holder -7- counter-clockwise and remove from headlight housing.
- Turn bulb -8- to remove from housing -7-.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Install new bulb in bulb holder.
- Install in reverse order of removal.
