Fog/Driving Lamp Bulb: Service and Repair

Fog Light Bulb, Replacing

NOTE:
- Left or right engine compartment trim must be removed prior to access to rear of headlight housing.
- Removal and installation procedure is identical for normal (halogen) and High Intensity Gas Discharge (HID) lamps.







Removing

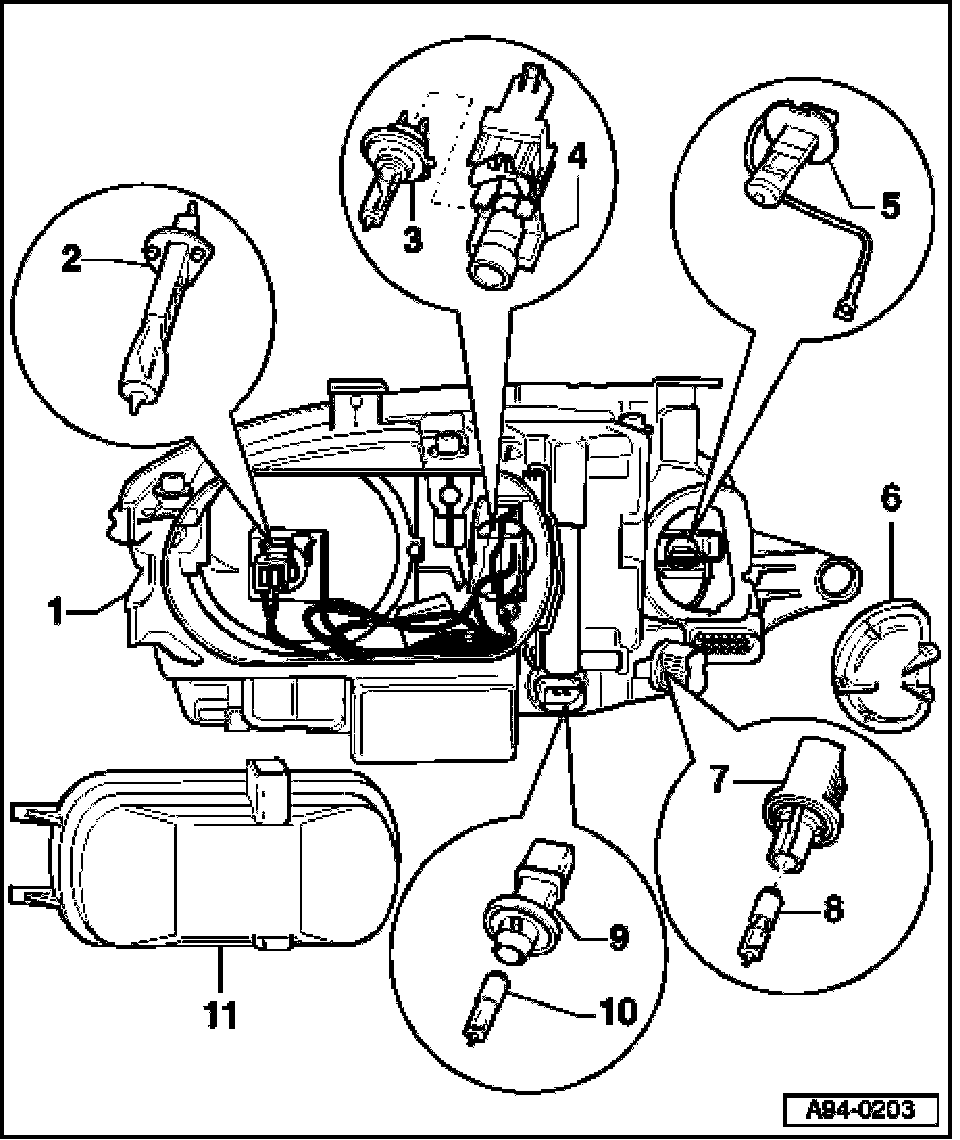

- Remove cover -6- from headlight housing -1- (turn counter-clockwise on left headlight and clockwise on right headlight).
- Disconnect electrical connection from fog light bulb -5-.
- Disengage wire clip and take bulb out of housing.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Install new bulb in housing.
- Secure bulb with wire clip.
- Connect electrical connection and install cover on headlight housing.
