Glove Box Lamp: Service and Repair

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

Glove Box Light, Removing And Installing

NOTE:
- The glove box light must be removed in order to change a bulb.
- Bulb for glove box light: 12 V, 3 W

Removing

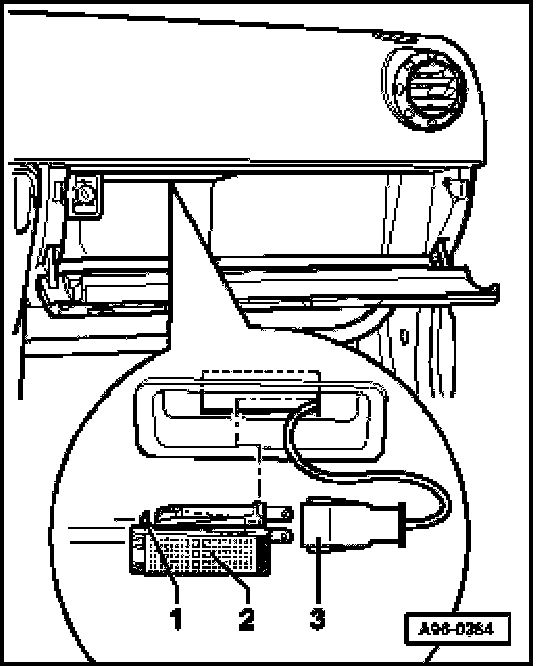

- Using a flat-tipped screwdriver, press in retaining tab -1- and lever out glove box light -2-.
- Disconnect electrical connection.-3-.
- Remove the bulb from its holder on the back of the glove box light.

Installing
- Install in reverse order of removal.
