Coupe

High-mount Brake Light

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.

High mount brake light - Coupe, removing and installing

Removing

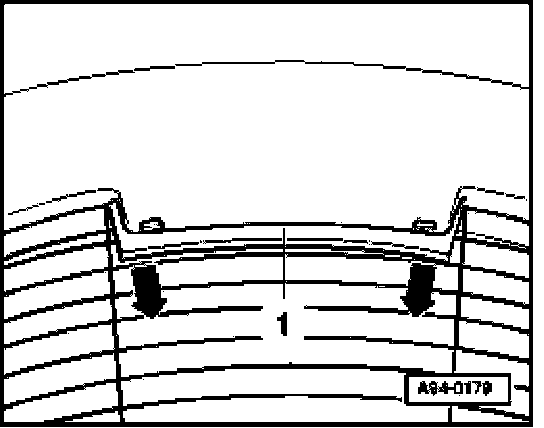

- Open rear lid and remove high-mount brake light -1- by pulling off downward -arrows-.
- Pull electrical connection out from retainer and disconnect.
- High-mount brake light assembly (LEDs) can only be replaced as complete unit.

Installing
- Install in reverse order of removal.
- Ensure electrical connection is securely located in retainer.
