General

Adaptation (Function 10)

The adaptation function is used to carry out and store the following adjustments:

- Adapting fuel consumption display
- Coding language version for Auto Check system
- Resetting service interval display (SID)
- Adapting odometer reading when instrument cluster is replaced
- Adapting fuel gauge sender resistance range

The individual functions are selected by entering the appropriate adaptation channel number from adaptation table.

Adaptation, initiating

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -1- and -0- to select "Adaptation" function 10.

Indicated on display:

Rapid data transfer Q
Adaptation

- Press -Q- button to confirm input

Indicated on display:

Adaptation
Enter channel number XX

- Enter desired channel number from adaptation table.
- Press -Q- button to confirm input

NOTE: After adapting one of the displays or exiting a particular channel, the adaptation function (function 10) must be selected again before the next adaptation channel can be entered.

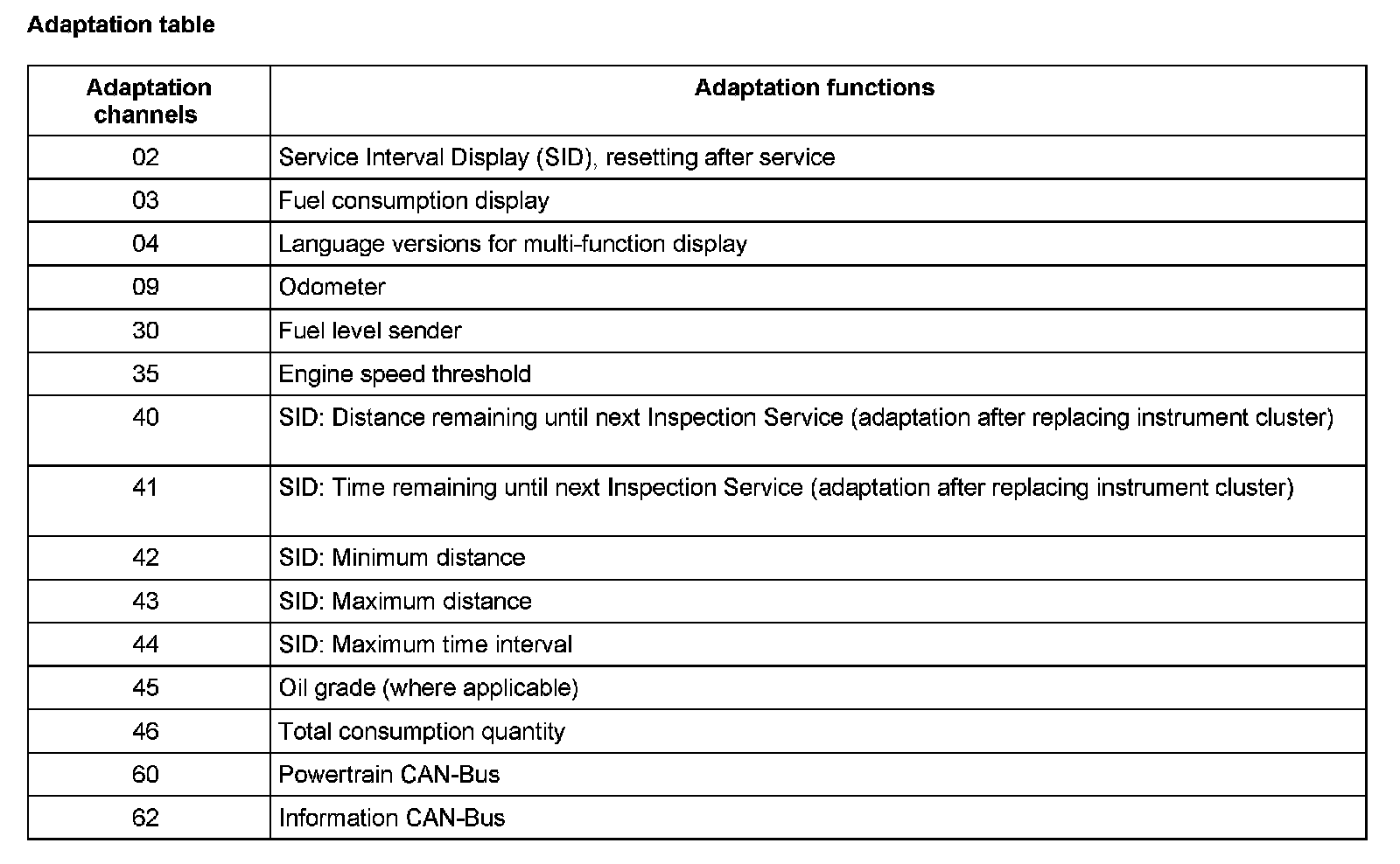

Adaptation table
