Fresh Air Blower -V2-, Removing and Installing

Fresh Air Blower -V2-, Removing And Installing

- Remove glove box.
- Remove screw clip for foam covering.

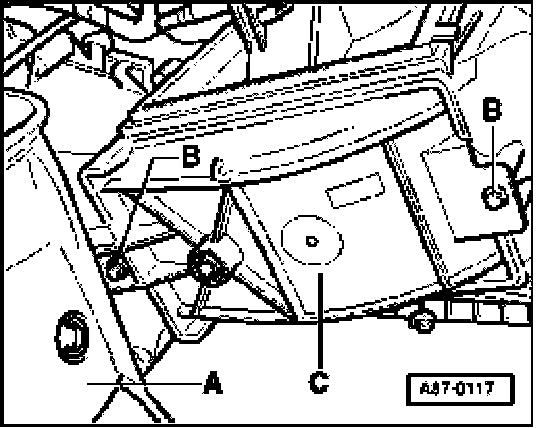

- Fold foam covering -A- away to one side.
- Remove screws -B- and cover -C-.

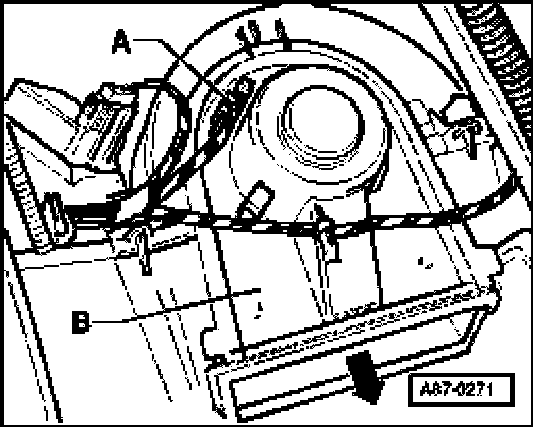

- Disconnect electrical connection -A- from fresh air blower.
- Pull fresh air blower -B- downwards from housing.
