Engine Mount: Adjustments

Engine mountings, adjusting
^ Unbolt hydraulic fluid reservoir above right - hand engine mounting and pull to one side.

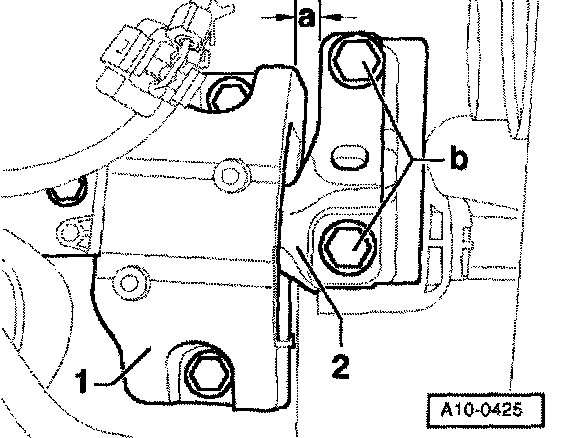

Distance - a - between engine console - 1 - and support arm - 2 - of right - hand engine mounting should be about 13 mm. It should be possible to insert a 12 mm flat iron bar without difficulty (e.g. special tool 201 1).
If the gap is too narrow or too wide, proceed as follows:

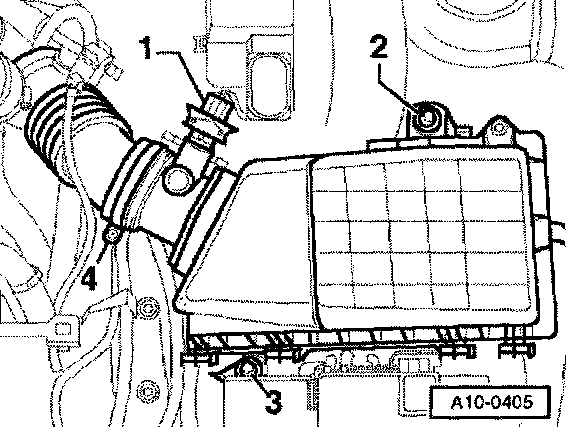

^ Remove air hose - 4 - from air mass meter.
^ Unplug electrical connectors for air mass meter - 1 -.
^ Unscrew bolts - 2 - and - 3 -, then remove air cleaner housing.

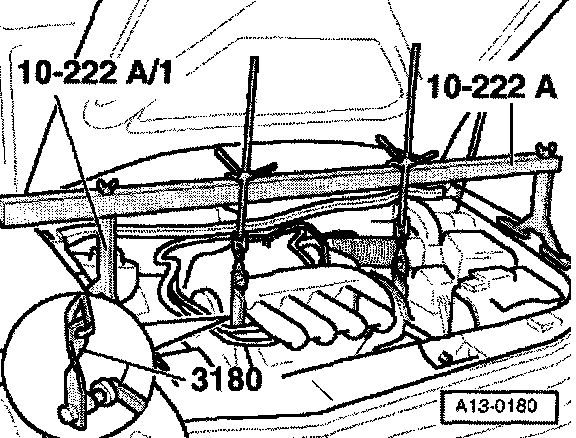

^ Set up engine support 10 - 222A onto fender panel flanges with supports 10 - 222A/1 and two spindles.
^ Bolt retainer 3180 to the right - hand lifting eye and engage on hook at end of right -hand spindle.
^ Engage hook at end of left - hand spindle in left - hand lifting eye.
^ Raise the engine slightly, taking up the weight evenly on both spindles.





^ Loosen bolts - b - on left and right - hand support arms by about two turns each.
^ Insert an iron bar between engine console and support arm, then move engine until gap - a - measures 13 mm.
^ Tighten (by hand) all four bolts - b - on left and right - hand support arms.
^ Tighten all four bolts to 85 Nm.
