Radiator Cap: Testing and Inspection

Testing pressure relief valve in filler cap

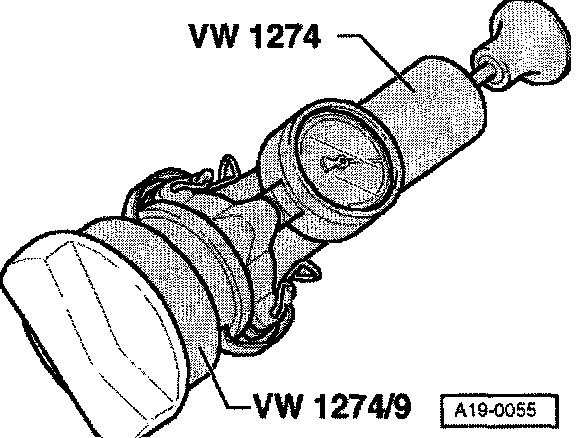

- Screw filler cap onto tester with adapter V.A.G 1274/9.




- Attach hand pump and build up pressure.
- The pressure relief valve should open at a pressure of 1.4 - 1.6 bar.
