Brake Booster, Removing and Installing

Brake booster, removing and installing

Removing
^ Release brake booster vacuum by operating the brake pedal several times.
^ Remove brake master cylinder.
^ Pull vacuum hose off brake booster unit.
^ Disconnect electrical connector from brake booster if part of original equipment.
^ Remove storage compartment on driver's side.





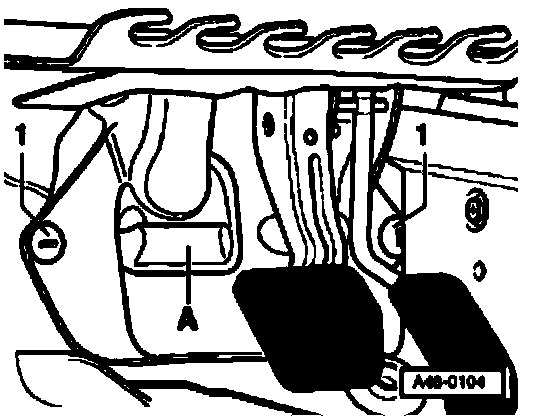

^ Remove bolts -1-.
^ Remove cover -A-.
^ Separate brake pedal from brake booster.





^ Remove nuts (arrows).
^ Remove brake booster.

Installing
Install in reverse sequence; note the following points:
^ Mount brake pedal on brake booster.
^ Install brake master cylinder.
^ Bleed brake system:
^ Bleed hydraulic system for clutch:
^ Initiate basic settings for brake pressure senders.
^ Perform ESP road test on vehicles with ABS/ESP Mark 60 system.

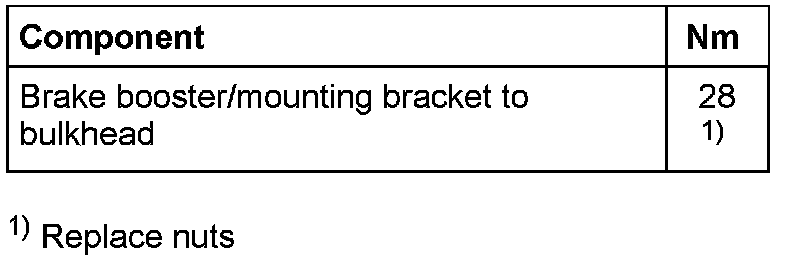

Tightening torque
