Parking Brake Cable - AWD, Remove/Install

Parking brake cable - vehicles with all wheel drive, removing and installing

Removing

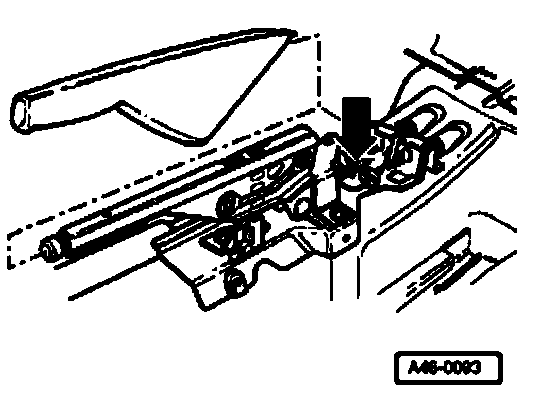

^ Remove switch mount with storage compartment -1- and cover for rear center console -2-.
^ Release parking brake.

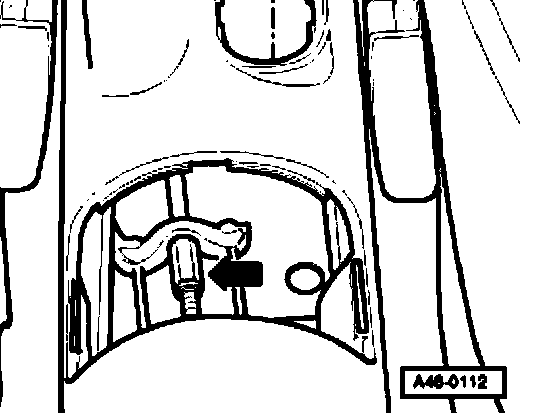

^ Loosen adjustment nut (arrow) until the parking brake cable can be unhooked from the compensator.





^ Pry off clip -1- for parking brake cable.

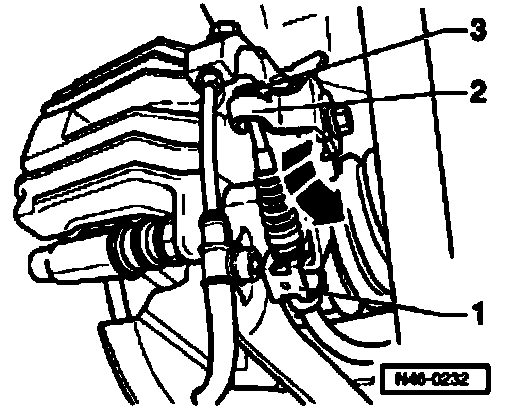

^ Press brake lever-2- in direction of arrow and unhook brake cable -3-.

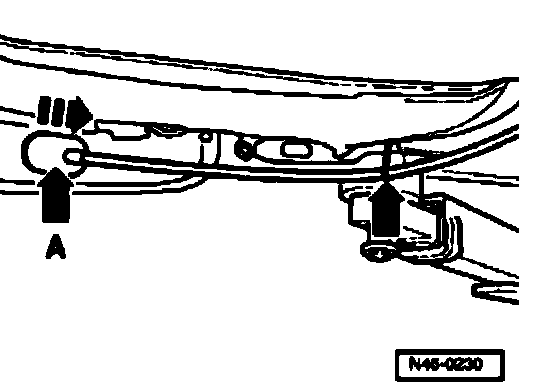

^ Remove rubber grommet (arrow -A-) in trailing arm.
^ Unhook parking brake cable (arrow) from retainer and pull out of trailing arm in direction of (arrow).

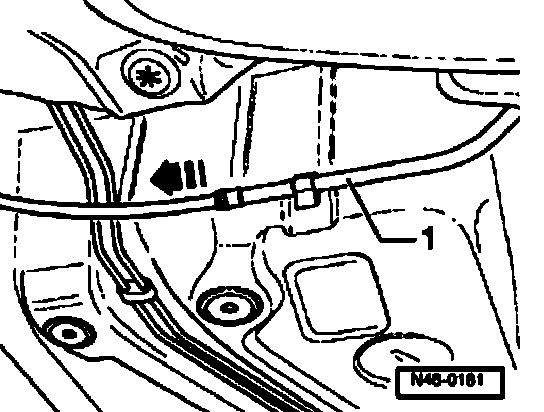

^ Pull parking brake cable out from guide tube -1- in direction of (arrow).

Installing
Install in reverse sequence; note the following points:
^ Slide parking brake cable into guide tube.

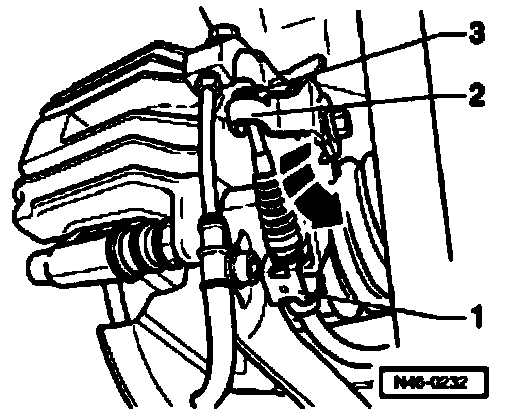

^ Press brake lever-2- in direction of (arrow) and attach parking brake cable.
^ Open clip -1- securing parking brake cable.

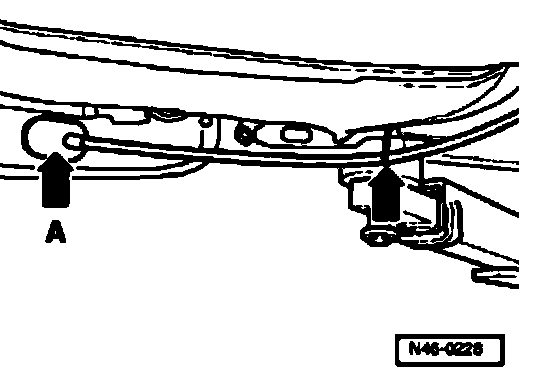

^ Install rubber grommet (arrow -A-) in trailing arm.
^ Hook parking brake cable in retainer (arrow).
^ Hook parking brake cable into compensator.

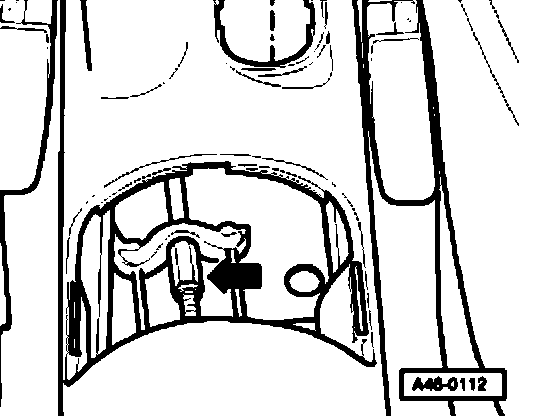

^ Pretighten parking brake cable with adjustment nut (arrow).
^ Adjust parking brake.
