Rear Brake on Vehicles With All Wheel Drive

Rear brake on vehicles with all wheel drive

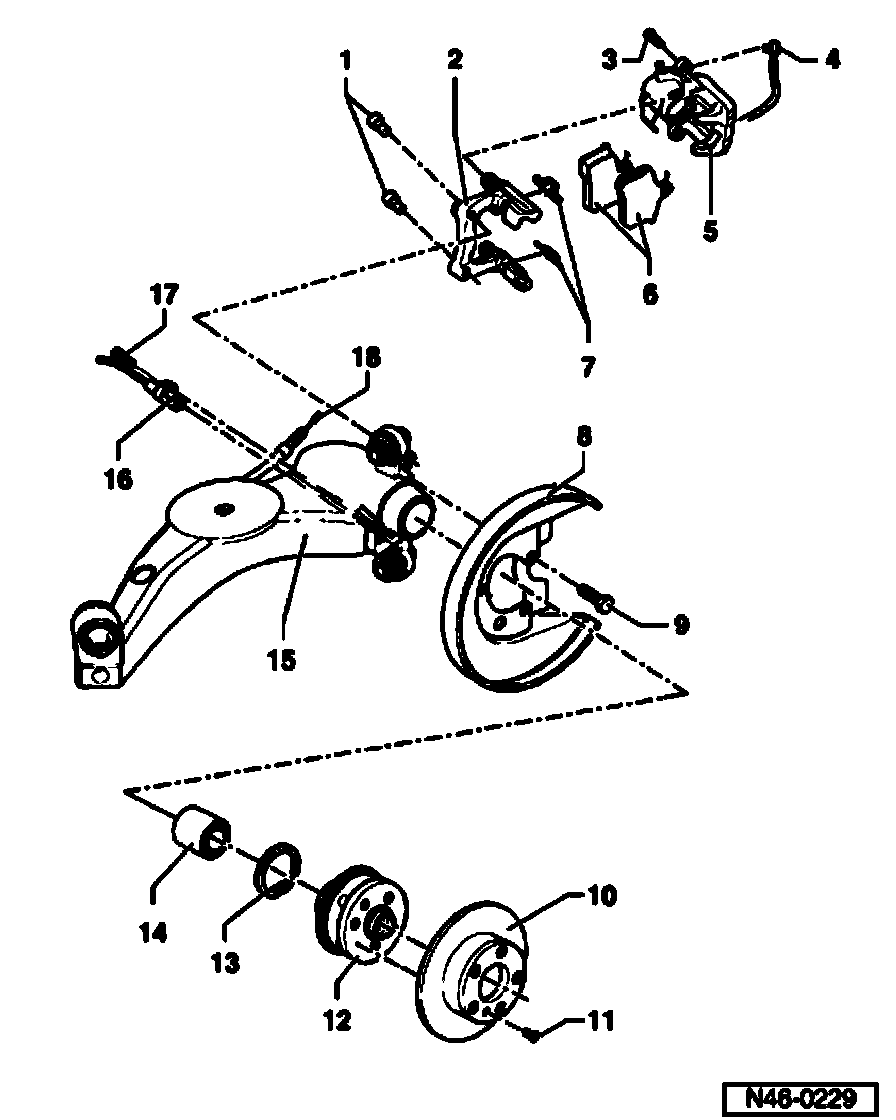

Exploded view

1. Hex socket head bolt - 65 Nm
2. Brake carrier
3. Bolt - 35 Nm
4. Brake hose/line
^ Tighten banjo bolt to 38 Nm
5. Brake caliper housing
6. Brake pads
7. Pad retaining springs
^ Always replace when changing pads
8. Backing plate
9. Bolt -10 Nm
10. Brake disc
11. Phillips-head screw - 4 Nm
12. Wheel hub with rotor
13. Circlip
14. Wheel bearing
15. Trailing arm
16. Speed sensor
17. Hex head bolt
18. Parking brake cable
