Front Brake Caliper - FN 3, Removing and Installing

Brake caliper- Front brakes FN 3, removing and installing

Special tools and equipment

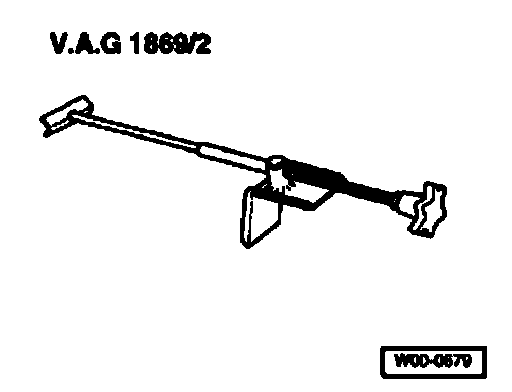

^ Brake pedal depressor VAG 1 869/2

Removing
^ Remove brake pads.

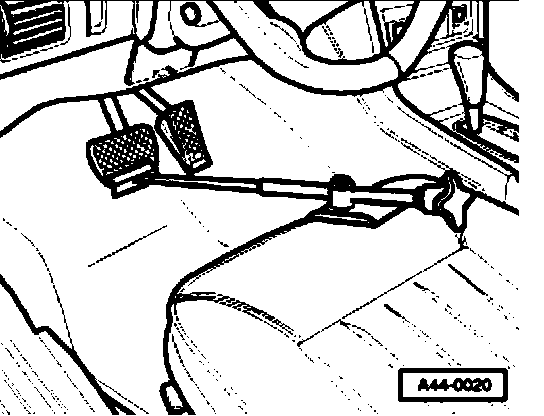

^ Insert brake pedal depressor VAG 1869/2 between brake pedal and driver's seat. Depress the brake pedal by at least 60 mm.

Note: Pressing down the brake pedal closes the valves in the brake master cylinder to prevent the brake fluid reservoir from running dry.

^ Connect bleeder bottle hose to bleeder screw on removed brake caliper.
^ Open bleeder screw.
^ Do not remove brake pedal depressor VAG 18169/2.
^ Remove brake hose from brake caliper.

Installing
Install in reverse sequence; note the following points:
^ Install brake pads.
^ Bleed brake system.

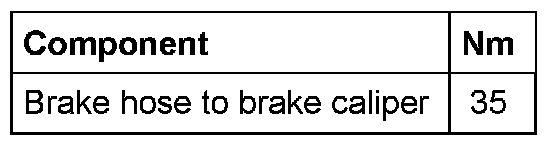

Tightening torque
