Brake Pedal, Assembly

Brake pedal

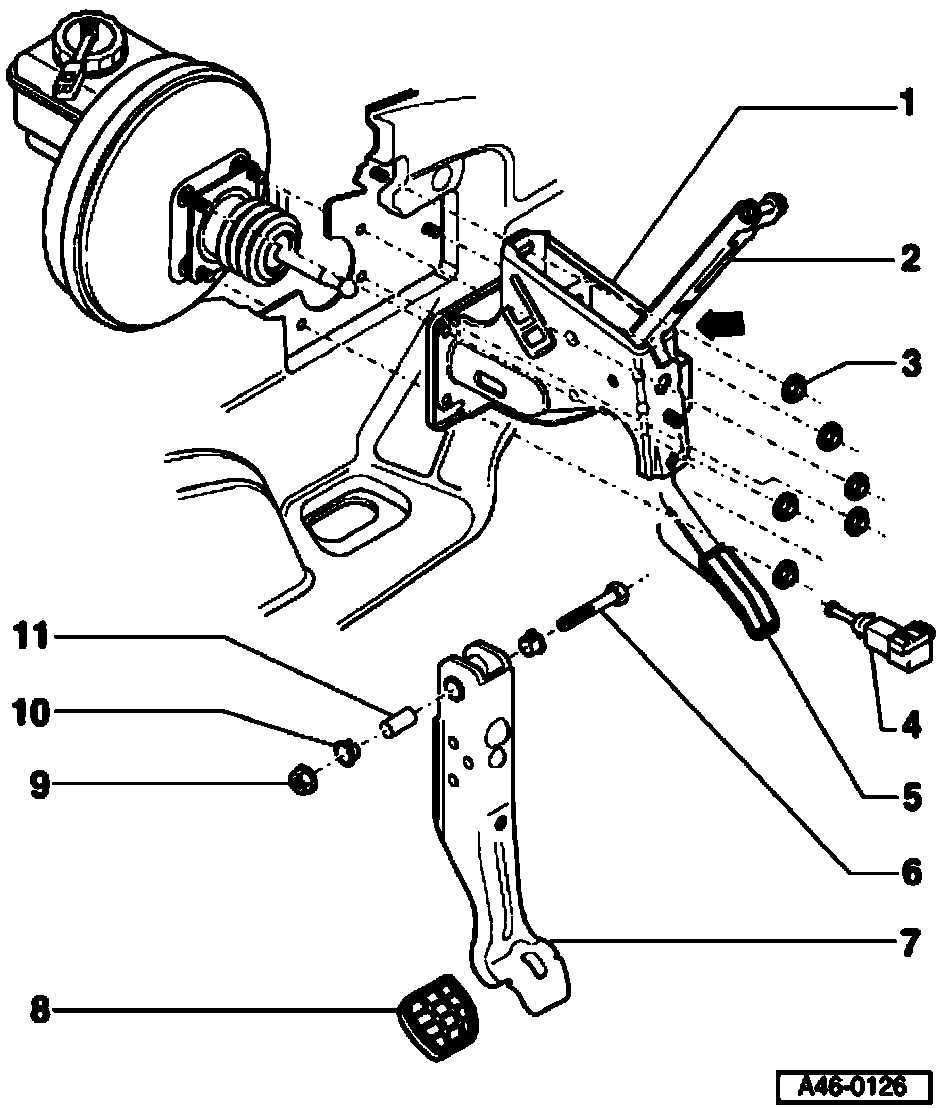

Exploded view

CAUTION: The brake pedal travel must not be restricted by additional floor coverings.

1. Mounting bracket
^ From approximately 06 99 with collapsing support -Item 2-.
^ When installing a new mounting bracket with collapsing support on a vehicle with year of make prior to approximately 06 99, the support must be cut off at the point indicated with an -arrow- there is no means of attaching.
2. Collapsing support
3. Nut-28 Nm
^ Self-locking
^ Replace each time after removing
4. Brake light switch
5. Accelerator pedal
6. Bolt
7. Brake pedal
8. Pad
9. Nut-20 Nm
^ Self-locking
^ Replace each time after removing
10. Mounting bushing
^ Grease all bearings with polycarbamide grease, G 052 142 A2 before installing
11. Pivot pin
^ Grease all bearings with polycarbamide grease, G 052 142 A2, before installing
