Brake Pedal and Brake Servo, Separating

Separating brake pedal from brake booster

Special tools and equipment

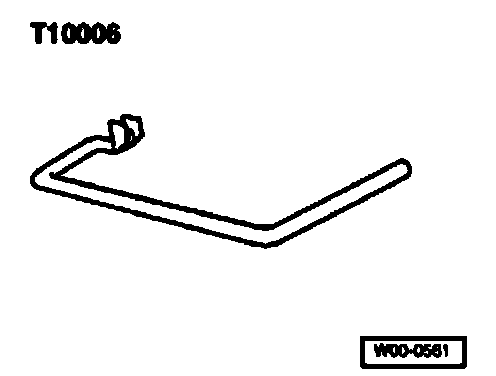

^ T 10006 Release tool

Separating
^ Remove storage compartment on driver's side.
^ Remove brake light switch (square housing).
^ Remove brake light switch (round housing).
^ Unplug electrical connectors from clutch pedal switch and from interlock switch.

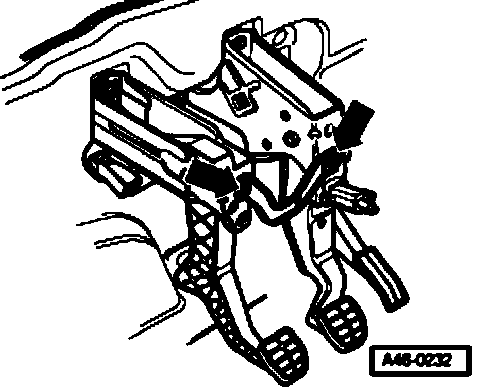

^ Remove connecting plate between clutch pedal and brake pedal -arrows- on vehicles with manual transmission.

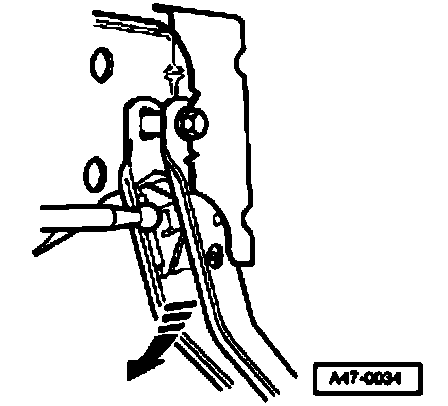

^ Press brake pedal -1- in direction of brake booster and hold.

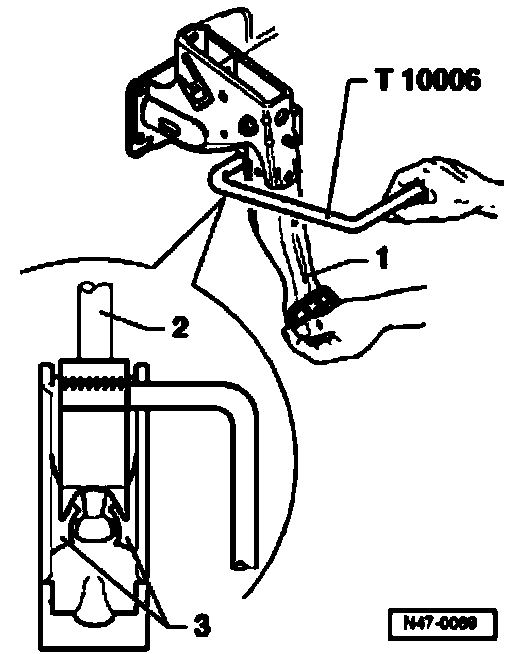

^ Insert release tool T 10006 as shown and pull toward driver's seat while providing support at brake pedal -1- (pedal must not be allowed to move to rear at this point). This presses retainer tabs -3- off ball head.
^ Pull both release tool T 10006 and brake pedal toward driver's seat (this pulls brake pedal off push rod ball head.

Note: For ease of illustration, Fig. shows separation of brake pedal from brake booster with pedal cluster removed.

Installing
Install in reverse sequence; note the following points:





^ Hold push rod ball head in front of mounting and push brake pedal in direction of brake booster, so that the ball head audibly locates.
^ Install brake light switch (square housing).
^ Install brake light switch (round housing).
