Front Wheel Drive

ABS wheel speed sensor, removing and installing
Removing

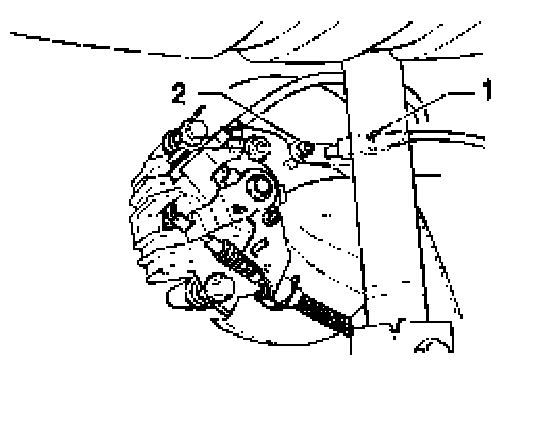

^ Release connector -1- on wheel speed sensor and disconnect wiring.
^ Remove bolt-2-.
^ Pull speed sensor out of stub axle.

Installing
Install in reverse sequence; note the following points:
^ Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with solid lubricant paste G 000 650.

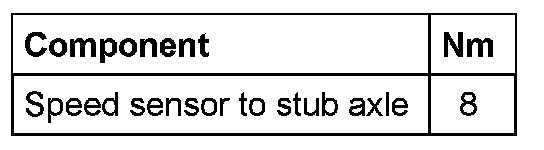

Tightening torque
