All Wheel Drive

Speed sensor, removing and installing

Removing

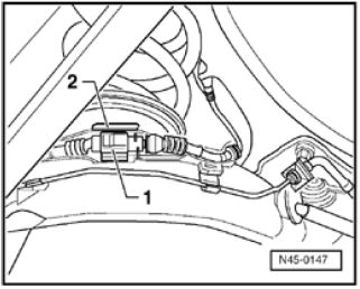

- Open cover -2- above connector for speed sensor.

- Unplug electrical connector -1-.






- Remove bolt -1-.

- Pull speed sensor out of trailing arm.

Installing

Install in reverse sequence; note the following points:

- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with solid lubricant paste G 000 650.

Tightening torque
Speed sensor to trailing arm 8 Nm
