Trunk / Liftgate Switch: Service and Repair

CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owners's Manual

Rear Lid Contact Switch, Removing And Installing

Removing
- Remove rear lid lock.
- Disconnect electrical connection.

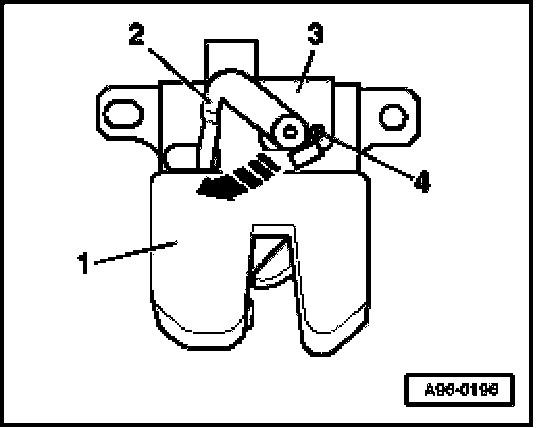

- With rear lid lock -1- removed, use a flat-tipped screwdriver to release plastic tab -3- at the two rivets -4-.
- Press lever -2- in direction indicated (arrow) and pull back plastic tab -3-.

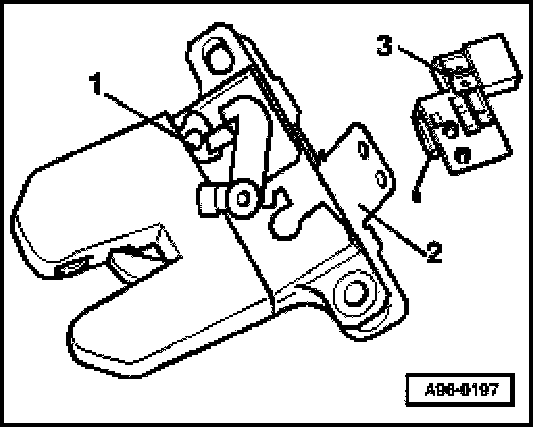

- Carefully remove contact switch -3- from rear lid lock -1-

Installing
- Install in reverse order of removal.
