Power Mirror Switch: Service and Repair

CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owners's Manual

Mirror Adjuster Switch, Removing

- Remove door trim.
- Remove insulation.
- Remove handle and switch trim.







- Disconnect harness connector-1-by pressing on retainer hook-2-.
- Remove window adjuster switch with trim plate by pressing on both springs -arrows-.

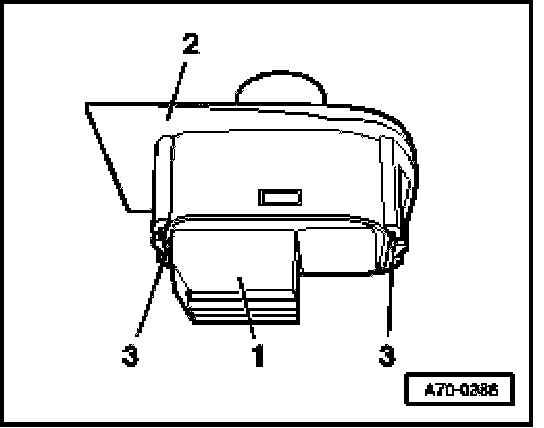

- Using screwdriver at position -3- (2x), detach mirror adjuster switch -1- from trim plate -2-.
