Front Trim For Convertible Top Storage Compartment

Front Trim For Convertible Top Storage Compartment

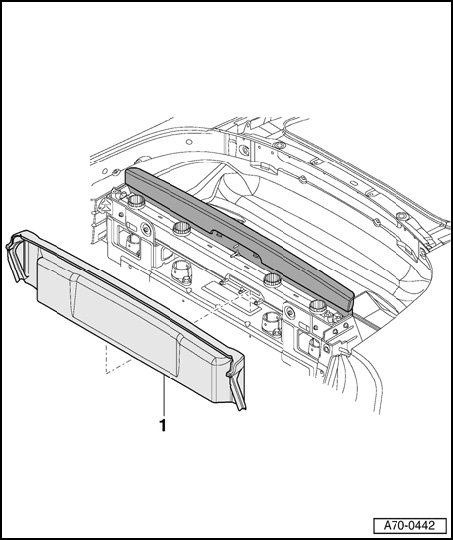

1 - Front trim for convertible top storage compartment

- Removing
- Close convertible top.
- Remove convertible top storage compartment trim - 1 - at bottom from trim for wind deflector and from wind deflector.
- Pull convertible top storage compartment trim - 1 - out from below convertible top storage compartment trim.
- Open convertible top.
- Remove trim - 1 -.

- Installing
- Open convertible top.
- Place trim - 1 - in convertible top storage compartment.
- Close convertible top.
- Slide trim - 1 - behind metal sheet at side.
- Remainder of installation is the reverse of removal.
