Convertible Top Storage Compartment Trim

Convertible Top Storage Compartment Trim

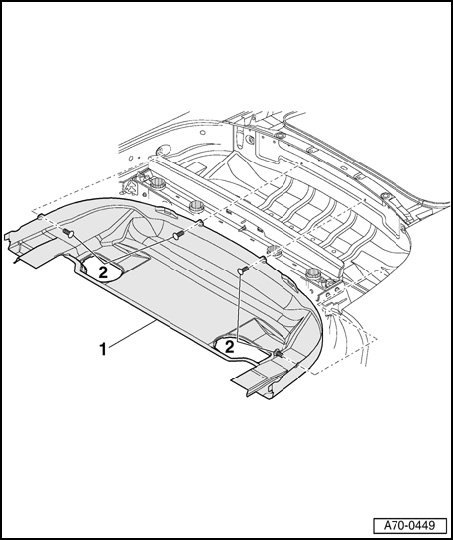

1 - Convertible top storage compartment trim
- Remove front trim for convertible top storage compartment
- Remove convertible top
- Remove clips - 2 -.
- Remove water drip tray
- Remove convertible top storage compartment trim - 1 - below water drip tray.
2 - Clips







Removing water drip tray
- Remove bolts - 2 - (2x).
- Pull water drip tray - 1 - slightly upward.
