Roll Bar, Removing and Installing

Roll Bar, Removing And Installing

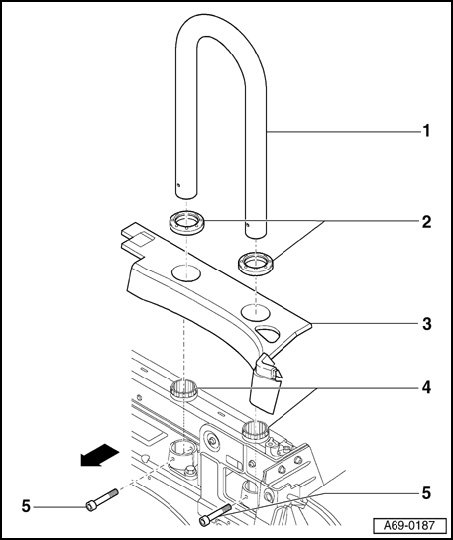

1 - Rollover bar

- Removing
- Removing collar for roll bar
- Loosen rear panel cover (without removing the anchorage point for the outer seat belt floor assembly) and insert a wedge between rear panel cover and crossmember for roll bar
- Remove rear panel side trim
- Remove bolts - 5 - (2x).
- Remove roll bar - 1 - from rubber guide - 4 - and rear panel cover - 3 -.

- Installing
- Before installing roll bar, check to be sure rubber guide is properly seated
- Do not use anything other than soapy water as lubricant.

2 - Collars
3 - Rear panel cover
4 - Rubber guide
5 - Bolts (2x)
- Tightening torque 20 Nm

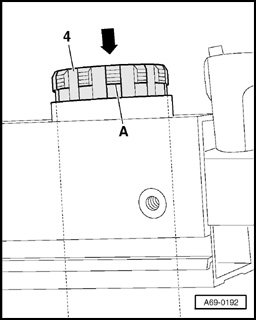

Installing rubber guide
- After installing rollover bar, check that rubber guide - 4 - is inserted in crossmember up to edge - A -.







Disengaging collar for roll bar
- Disengage by turning collar - 1 - to left and right.
