Side Trim of Rear Panel

Side Trim Of Rear Panel

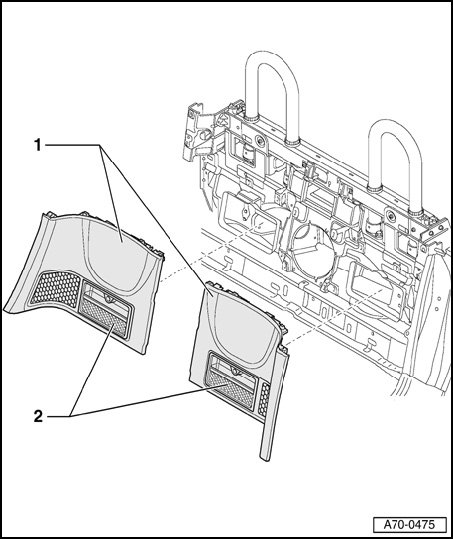

1 - Rear panel side trim
- Remove rear panel center trim
- Loosen rear panel cover (without removing the mounting point for the outer seat belt floor assembly) and insert a wedge between rear panel cover and crossmember for roll bar
- Disengage rear panel trim - 1 - from rear panel starting at top (grab rear panel through opening at - 2 - ).
- After installing, make sure there is a smooth transition to door seal and B-pillar.
2 - Cover
