Roof Frame Trim, Removing and Installing

Roof Frame Trim, Removing And Installing

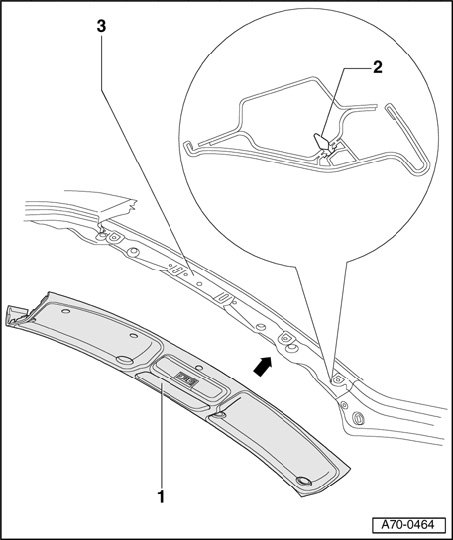

1 - Roof frame trim
- Arrow points in direction of travel

- Removing
- Remove front interior light
- Remove outer sun visors
- Remove center trim - 1 - from roof frame - 3 -, starting with clips - 2 -.

- Installing
- Ensure engagement in A-pillar.

2 - Clips (6x)
3 - Roof frame







Removing interior lights
- Release interior light - 1 - on front side.
- Disconnect harness connectors.
