Rear Panel Cover

Rear Panel Cover

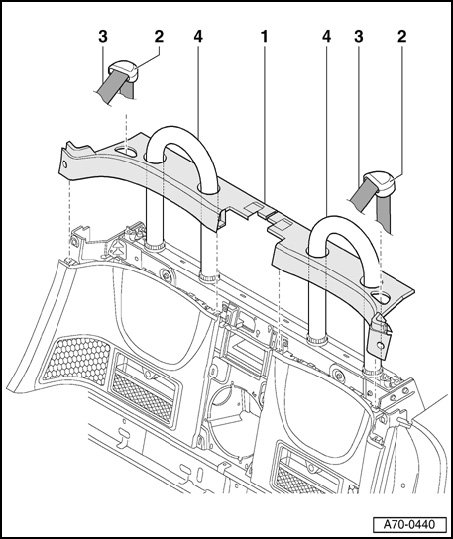

1 - Rear panel cover
- Remove rear panel center trim
- Tape off roll bar up to bend using adhesive tape.
- Disconnect harness connectors.
- Removing collar for roll bar
- Disengage trim - 1 - from roll bar crossmember and rear panel trim, starting in the center using a screwdriver.
- Insert a wedge between rear panel cover and crossmember for roll bar.
- Remove rear panel side trim
- Remove roll bar
2 - Seat belt cover
3 - Belt
4 - Roll bar







Disengaging collar for roll bar
- Disengage by turning collar - 1 - to left and right.
