Luggage Compartment Side Trim - Roadster

Luggage Compartment Side Trim

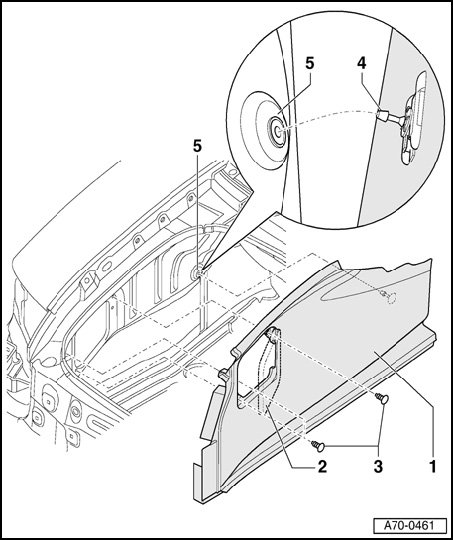

1 - Luggage compartment trim
- Remove luggage compartment floor lining
- Remove rear cross panel trim
- Open cover - 2 -.
- Remove clips - 3 - (3x).
- By pulling trim - 1 - inward, the clip - 4 - can be removed from mount - 5 -.
- Remove trim - 1 - upward over the rear lid lock.
- Remove old mount - 5 - from chassis for new trim - 1 -.
2 - Cover
3 - Clips
4 - Clips
5 - Mount
