Cover At Center Rear Panel Trim, Removing and Installing



Cover At Center Rear Panel Trim, Removing And Installing

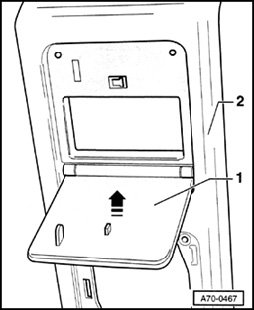

- Open cover - 1 -.
- Press cover - 1 - inwards (direction of arrow).
- Remove cover - 1 - from rear panel trim - 2 -.
