Center Rear Panel Trim, Removing and Installing

Center Rear Panel Trim, Removing And Installing

- Move both seats forwards and fold backrest forward.
- Look through speaker trim to establish whether center speaker is installed.

Vehicles with center speaker

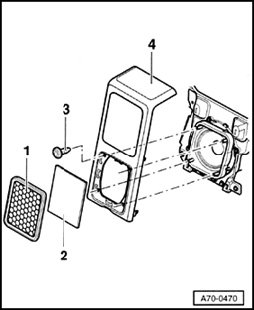

- Starting at side, use screwdriver to carefully release center speaker trim - 1 -
- Remove bolts - 3 - (4x).
- Continue for vehicles without center speaker.

Vehicles without center speaker

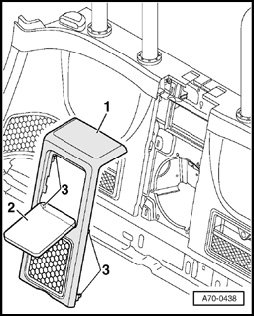

- Open cover - 2 -.
- Reach through cover opening - 2 - into trim - 1 - and disengage by pulling trim - 1 - forwards to release.

3 - Clip (6x)
2 - Cover (vehicles without center speaker only)
- Remove cover - 2 - if center speaker is to be retrofitted.
4 - Center rear panel trim
