A-Pillar Trim
>>
Upper A-Pillar Trim, Removing and Installing
>>
Roadster
Roadster

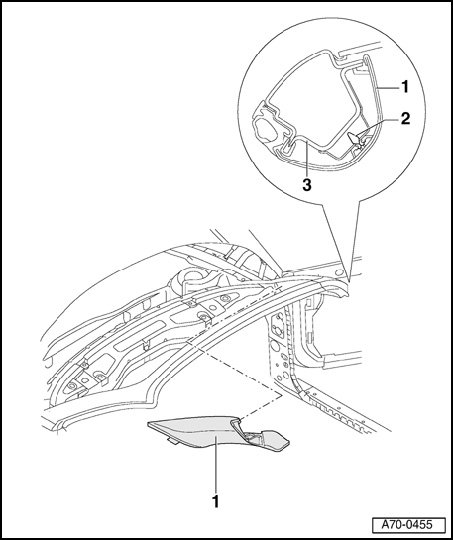

Upper A-pillar Trim, Removing And Installing
1
-
Upper A-pillar trim
-
Remove
sun visors
.
-
Remove roof
frame
trim.
-
Remove upper trim - 1 - from A-pillar starting with clips - 2 -.
-
Remove trim - 1 - upward.
2
-
Clips (4x)
3
-
A-pillar
