Trim Panel: Locations

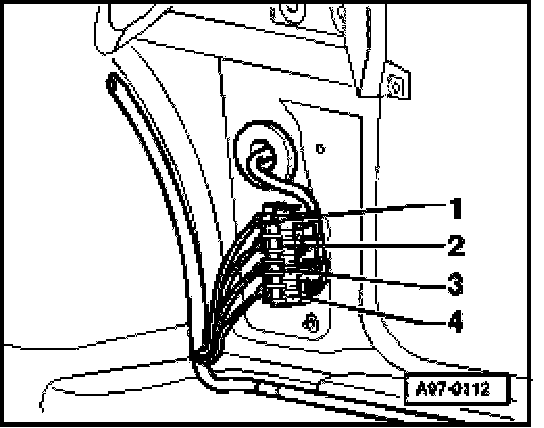

Connectors on A-pillar

Connector point on A-pillar (driver's side)







The connector point is under the floor covering in the left-hand footwell.

1 - Central locking (brown)
2 - Electric window lifter (red)
3 - Electric mirror adjustment (blue)
4 - Radio (green)

Connector point on A pillar (passenger's side)







The connector point is under the floor covering in the right-hand footwell.

1 - Central locking (brown)
2 - Electric window lifter (red)
3 - Electric mirror adjustment (blue)
4 - Radio (green)
