Roadster Trim

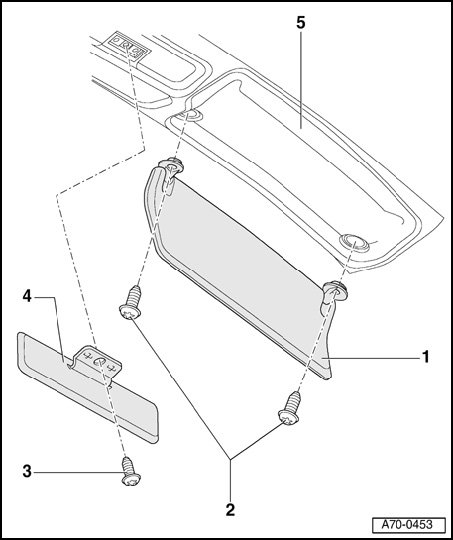

Sun Visor, Removing And Installing







1 - Sun visor
- Remove front interior light
- Fold sun visors into open position.
- Remove bolts - 2 - (2x).
- Disconnect harness connector for sun visor.
2 - Bolts (2x)
- Tightening torque 1.5 Nm
3 - Bolt(1x)
- Tightening torque 1.5 Nm
4 - Center sun visor
- Fold sun visors into open position.
- Remove bolt - 3 - (1x).
5 - Roof frame trim
