Switches In Center Console, Removing and Installing

CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owners's Manual


Switches In Center Console, Removing And Installing

Removing

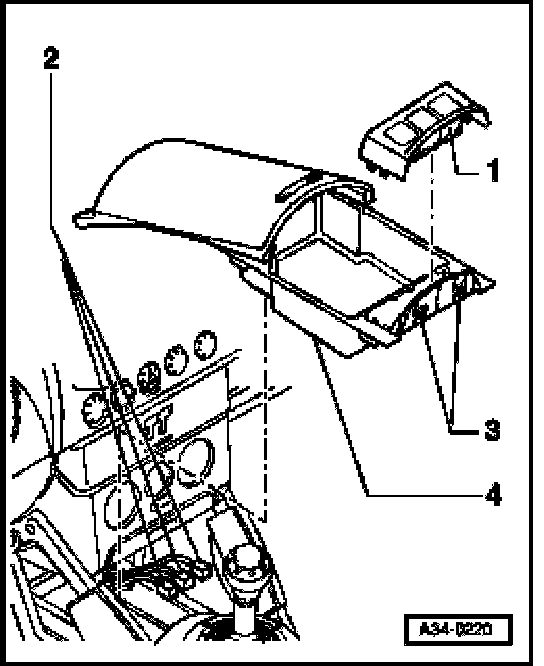

- Push back cover above switch console -1-.
- Lift out switch console -1- together with connectors -2- from opening -3- in insert -4-.
- Disconnect electrical connections -2- by pressing retainer catches on sides of connectors and separating at the same time.

Installing
- Install in reverse order of removal.
