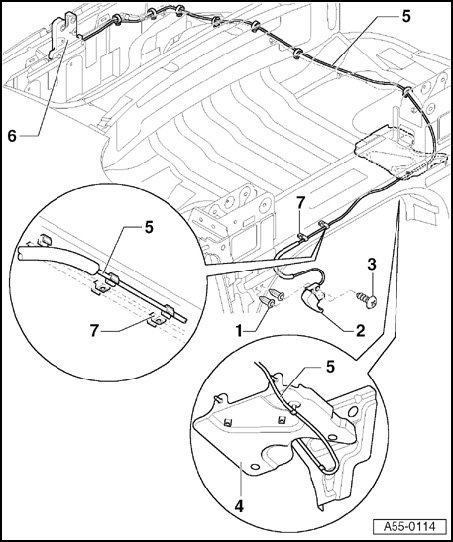

Cable For Rear Lid Latch

Cable For Rear Lid Latch







1 - Expanding inserts
2 - Lid latch release lever
- Route through clips as shown.
3 - Phillips-head screw
- 1.5 Nm
4 - Noise chamber, lower part
- Cannot be removed until hydraulic pump is removed.
5 - Lid latch release cable
6 - Rear lid latch
7 - Clip
