Luggage Compartment Front Trim

Luggage Compartment Front Trim

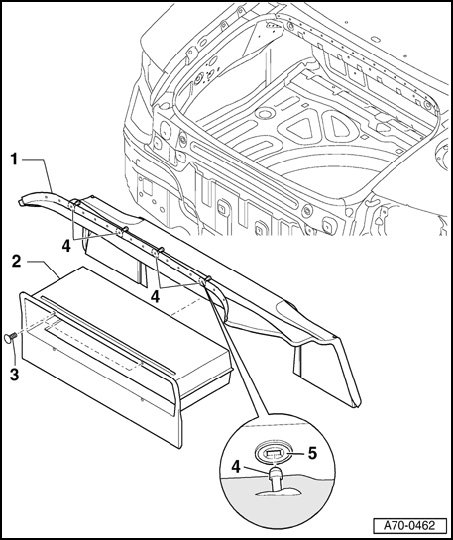

1 - Luggage compartment front trim
- Remove luggage compartment floor lining
- Remove luggage compartment side trim.
- Remove clips - 3 - (2x).
- Pry storage compartment - 2 - upward from bottom and simultaneously pull storage compartment - 2 - toward rear.
- Remove storage compartment - 2 -.
- Pull upper trim - 1 - out from below seal.
- Pull upper trim - 1 - out of mounts - 5 - at clips - 4 - (4x).
- Remove old mount - 5 - from chassis for new trim - 1 -.
- After assembling trim, make sure seal is properly installed
2 - Storage compartment
3 - Clip
4 - Clips
5 - Mount
