Front Door Hinge: Service and Repair

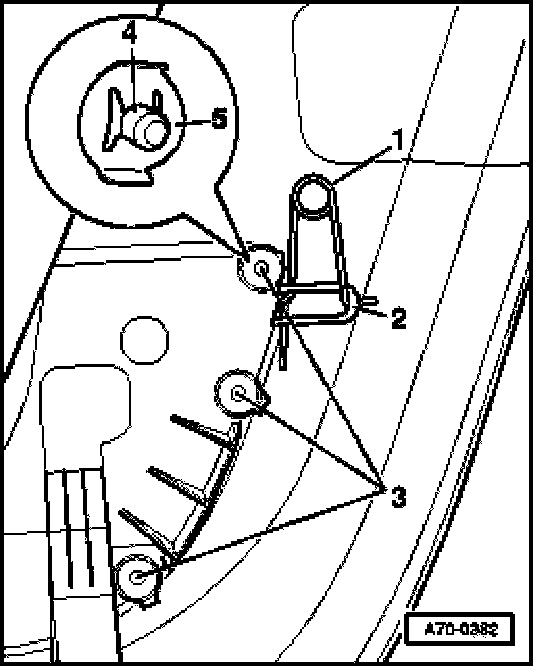

Hinged Pocket Assembly, Removing And Installing

- Remove door trim.
- Remove insulation.







- Disengage spring-1-.
- Drill out welds-3- (11x).
- Pull out link -2- forward.
- Press through pins -4- on new pocket and fasten pocket with clips -5- (as in parts catalog microfiche).
