Reading
Read Measuring Value Block (Function 08)
Performing the function "Read Measuring Value Block"
Indicated on display
Rapid data transfer HELP
Select Function XX
- Press buttons -0- and -8- to select "Read Measuring Value Block function 08.
Indicated on display
Rapid data transfer Q
08 - Read Measuring Value Block
- Confirm entry with the -Q- button.
Indicated on display
Read Measuring Value Block
Enter display group number XXXX
- Enter display group number.
- Press Q button to confirm input.
The measuring value block which has been selected will appear in the standard format.

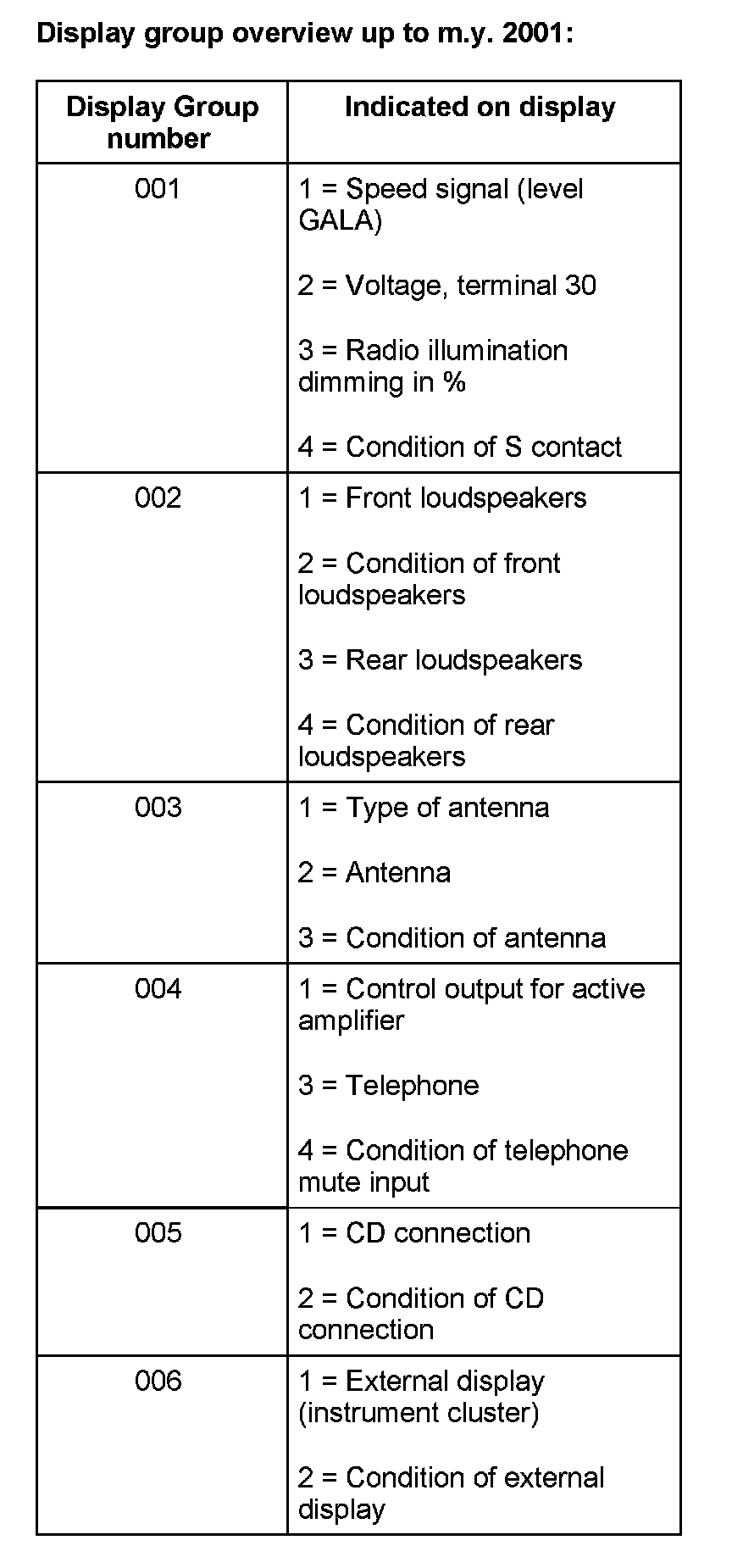

Display Group Overview Up To M.y. 2001:
Display Group Number 001 - 006:

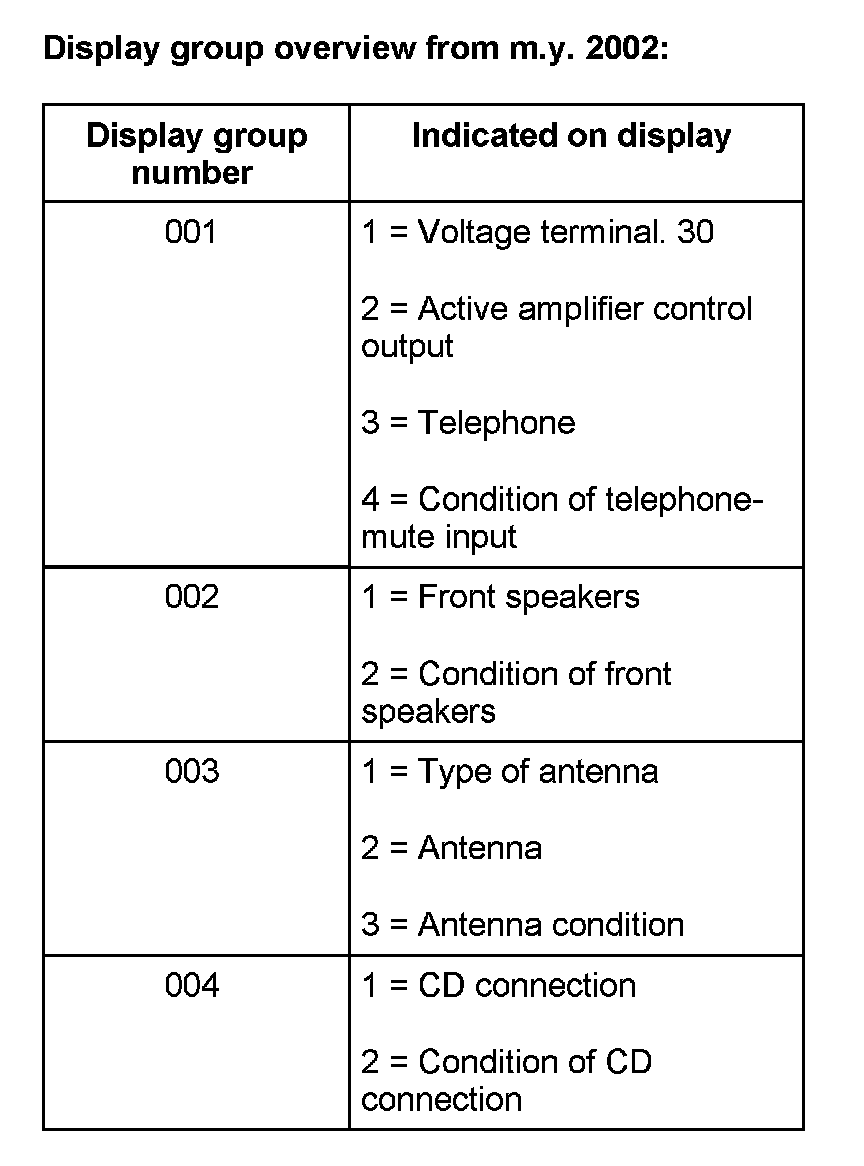

Display Group Overview From M.y. 2002:
Display Group Number 001 - 004:
