Code Control Module (Function 07)
Code Control Module (Function 07)
This function is used to code the radio as follows:
- Radio configuration
- Sound system
- Number of passive loudspeakers
- Country identification
NOTE:
- The coding procedure is used to set the various radio configuration options.
- The coding table only gives the combinations that are available for the Audi TT.
- The term "remotely powered antenna" refers to the active roof antenna of the Audi TT (e.g. rear window antenna), whose voltage supply for the antenna amplifier is supplied via the center wire of the antenna cable.
- The coding must always correspond to the equipment installed in the vehicle.
Coding procedure
Indicated on display
Rapid data transfer HELP
Select function XX
- Press buttons -0- and -7- to select "Code Control Module" function 07.
Indicated on display
Rapid data transfer Q
07 - Code control module
- Confirm input with the -Q- button.
Indicated on display
Code control module Q
Enter code number XXXXX 06812
- Enter code number according to coding table.
Coding as of m.y. 2002: 04632
- Radio configuration 5: 0 = Standard
- Radio configuration 4: 4 = TT
- Radio configuration 3: 6 = with Bose and active amplifier switch-off for telephone call
- Radio configuration 2: 3 = with navigation and Telephone
- Radio configuration 1:2 = with CD changer
8E0035195B concert NP2 0004 ->
Coding 04632 WSC XXXXX
- Control module identification with the entered coding appears on display (04632).
- Press -"button to end coding
Indicated on display:
Rapid data transfer HELP
Select function XX
- Press buttons -0- and -6-.
Indicated on display:
Rapid data transfer Q
06 - End output
- Press Q button to confirm input.

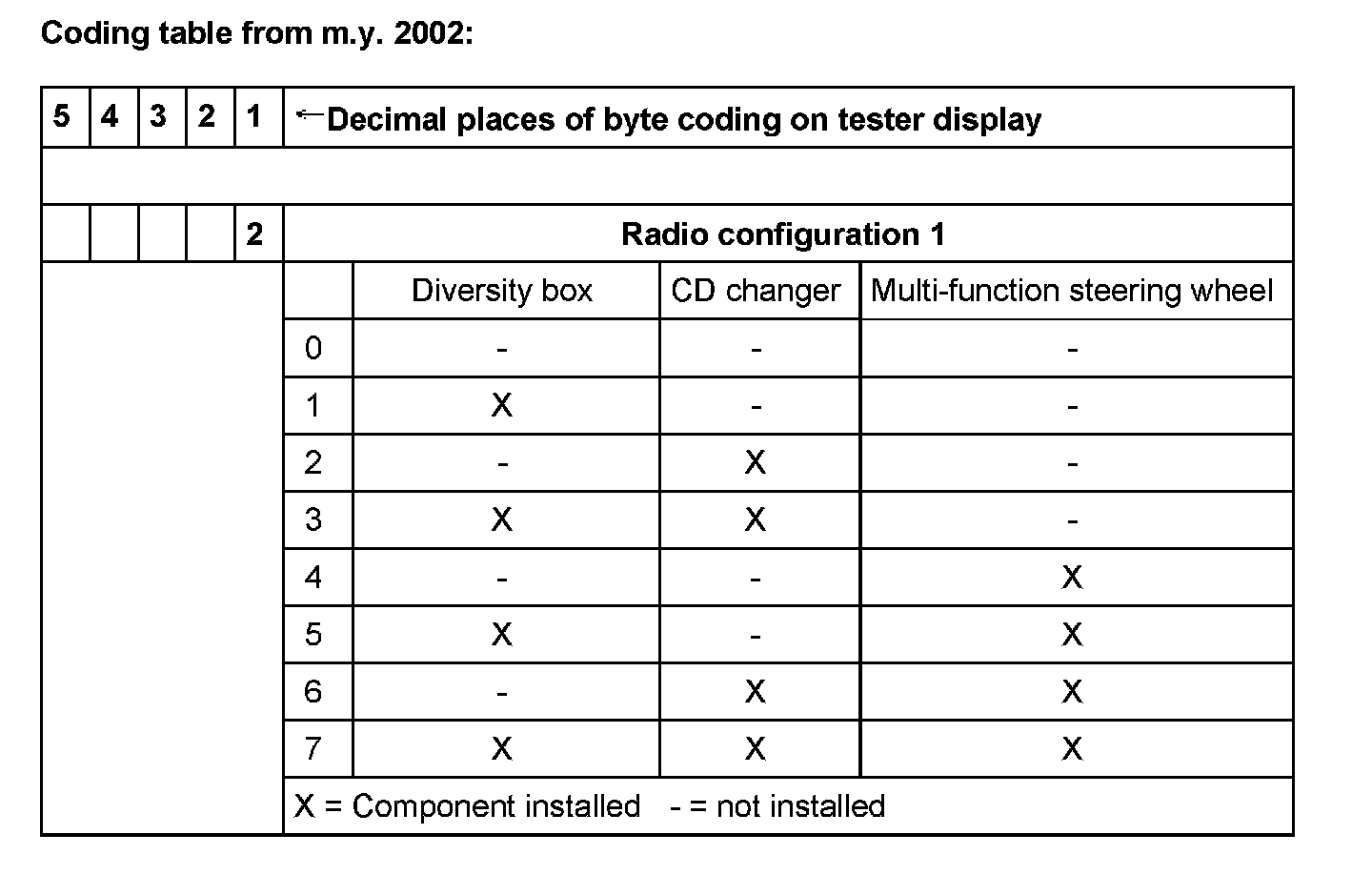

Coding Table -1:

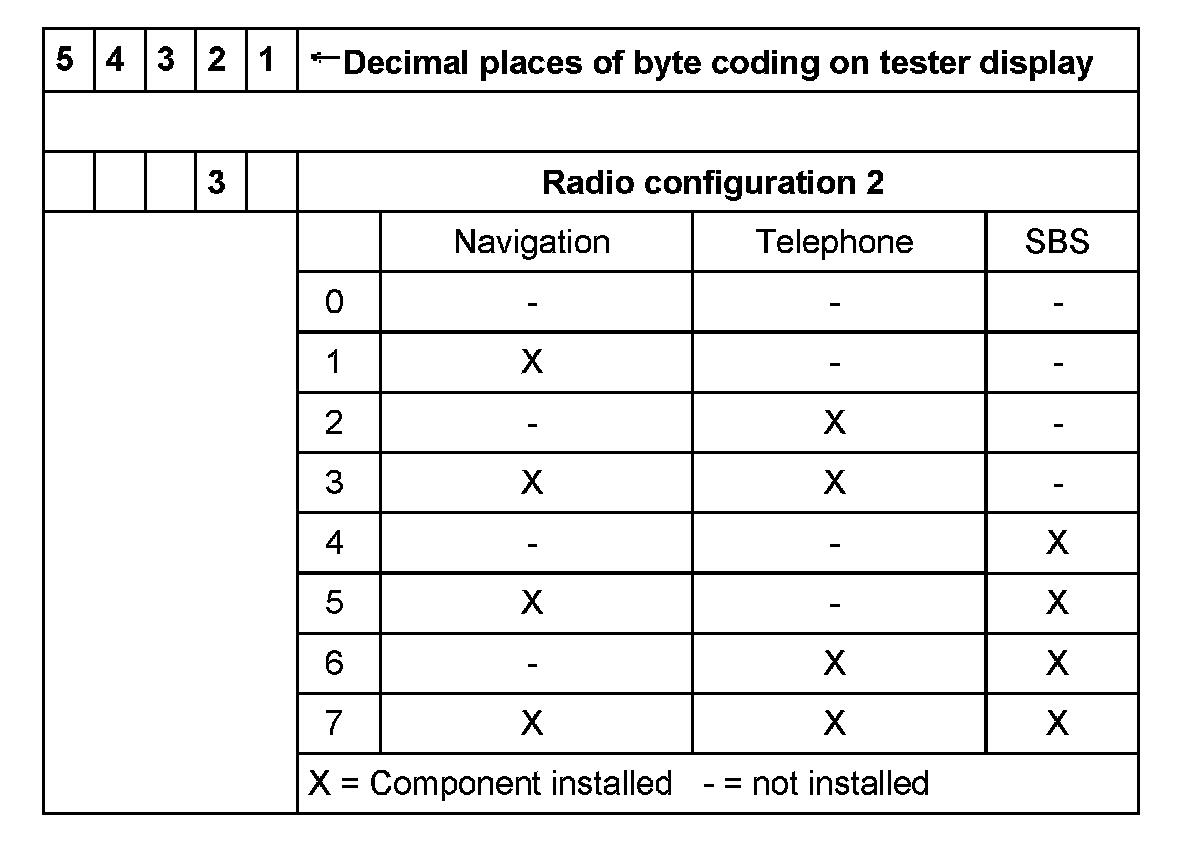

Coding Table - 2:

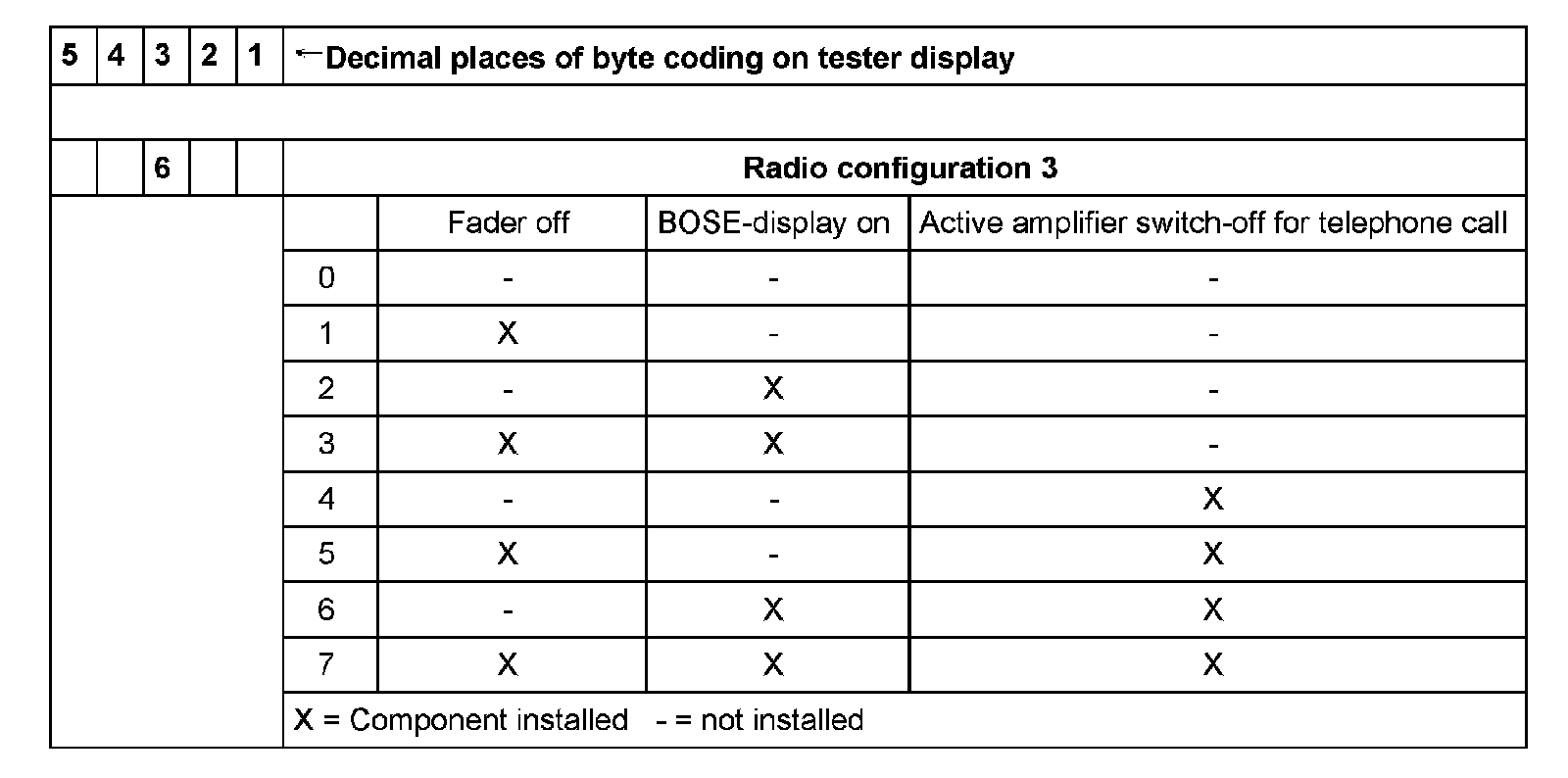

Coding Table - 3:

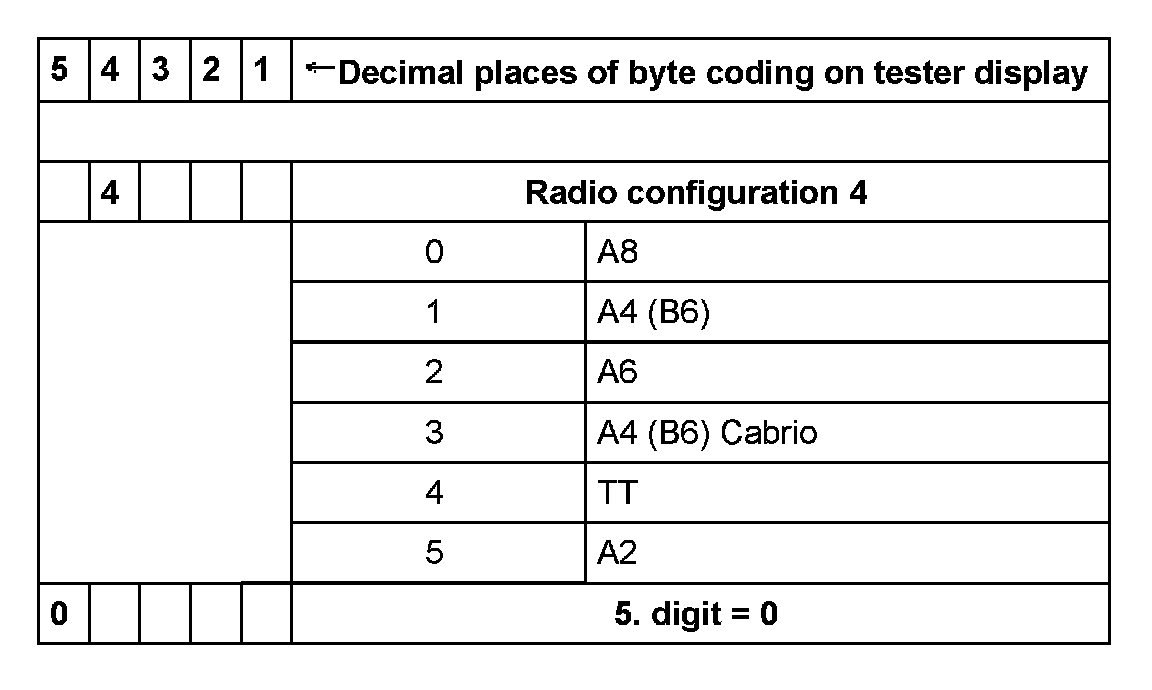

Coding Table - 4:
